Tenshock TS-AX60-Pro Brushless ESC 60A Electronic Speed Controller for gliders

RC Equipment

£125.00

Out of stock

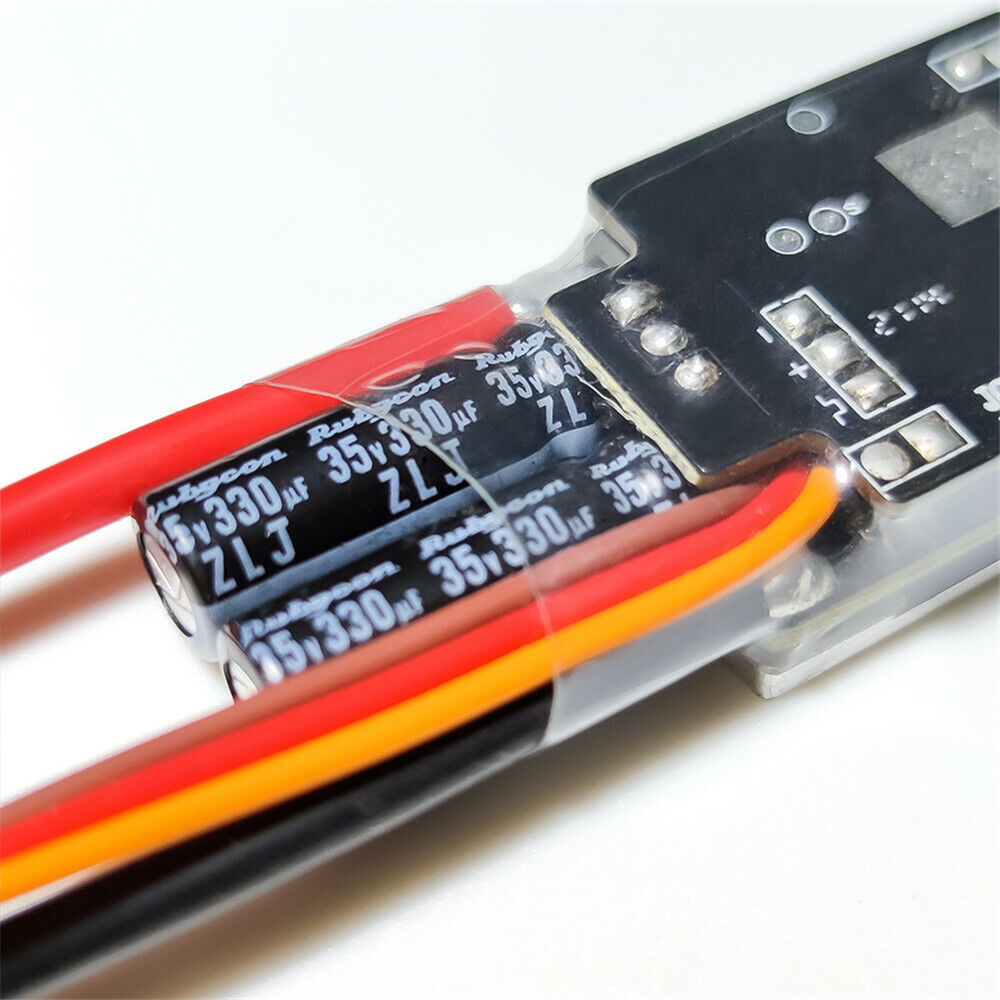

TS-AX60-Pro Brushless ESC 60A Electronic Speed Controller

Looking for the perfect ESC for your F5J / RES glider? The TS-AX60-Pro from Tenshock can handle so much power with great linear output, perfectly matched with the Tenshock motors for a slow, level flight when trying to work that light lift during the launch window with the ability to deliver explosive power if you don't get that low level thermal and need to accelerate out to height in the last few seconds.

Price includes FREE P&P (UK only / not signed for).

Features:

  • Great linear control, lets you stand out in the competition.

  • 80W super BEC output with 3 voltage options (6V / 7.2V / 8.4v)

  • With brake energy recovery & brake locking functions

          to ensure the efficient use of power.

  • Regular firmware upgrades

  • Support tension-link, review historical data and analyze usage.

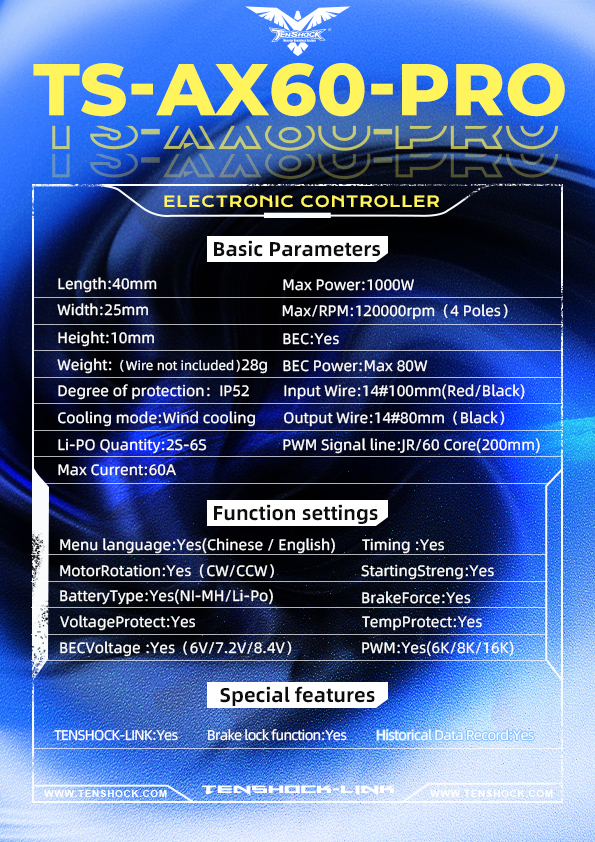

Specification:

  • Length:   40mm

  • Width:     25mm

  • Height:   10mm

  • Weight:   28g (not including wire)

  • Degree of protection:        IP52

  • Cooling mode:                   Wind cooling

  • Li-PO Quantity:                   2S-6S

  • Max Current:                      60A

  • Max Burst Current:            80A  (5 seconds)

  • Max Power:                        1000W

  • Max/RPM:                          120,000rpm（4 Poles）

  • BEC:                                     Yes

  • BEC Power:                         Max 80W

  • Input Wire:                          14#100mm(Red/Black)

  • Output Wire:                       14#80mm（Black）

  • PWM Signal line:                JR/60 Core(200mm)

Function settings:

  • Menu language:                  Yes (Chinese / English)

  • Motor rotation:                    Yes (CW/CCW）

  • Battery type:                        Yes (NI-MH/LiPo)

  • Voltage protection:             Yes

  • BEC Voltage:                        Yes（6V/7.2V/8.4V）

  • Timing:                                 Yes

  • Starting strength:               Yes

  • Brake force:                         Yes

  • Temperature protection:    Yes

  • PWM:                                    Yes (6K/8K/16K)

Special features：

  • TENSHOCK-LINK:               Yes

  • Brake lock function:           Yes

  • Historical Data Record:      Yes

What's included:

  • 60 amp ESC unit with JR rx plug

  • 3.5mm banana plugs & sockets (3 of each)

  • XT60H-M x 1
