Tenshock TS-AX40-ST Brushless ESC Electronic Speed Controller for RC Gliders

RC Equipment

£75.00

Out of stock

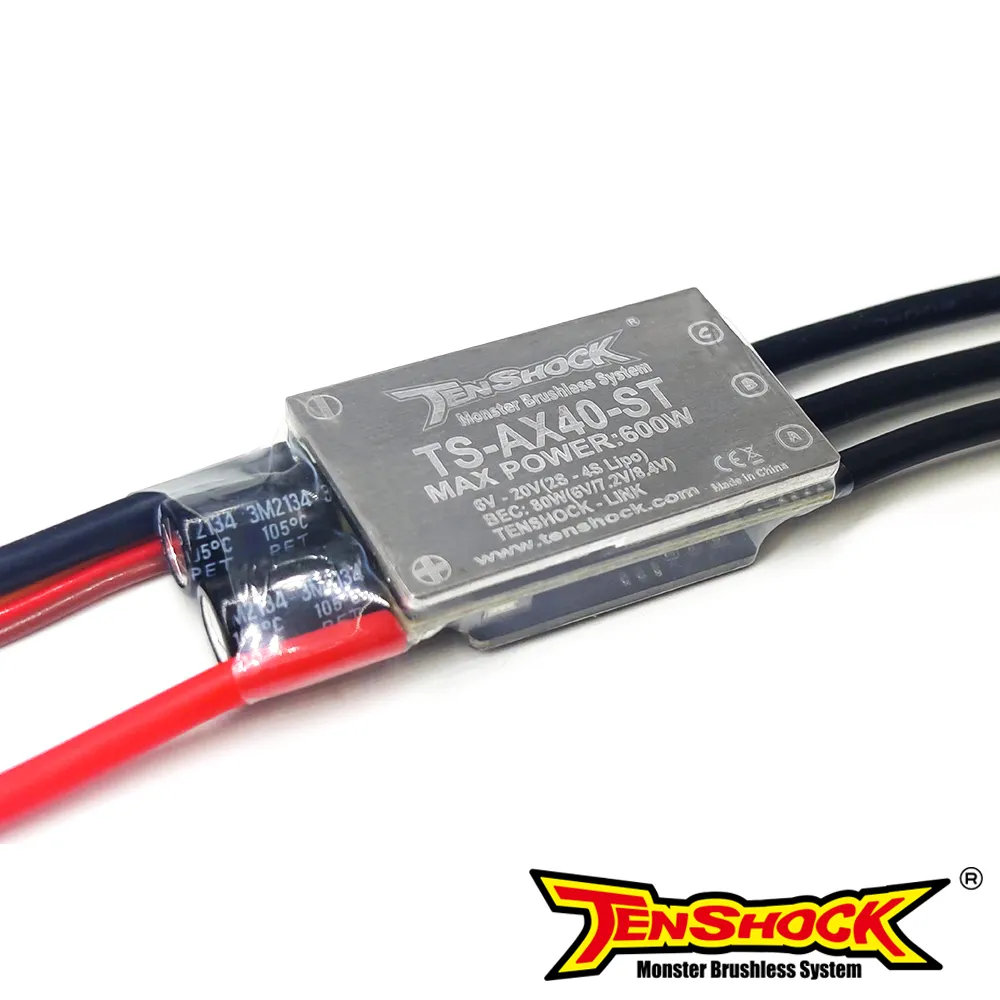

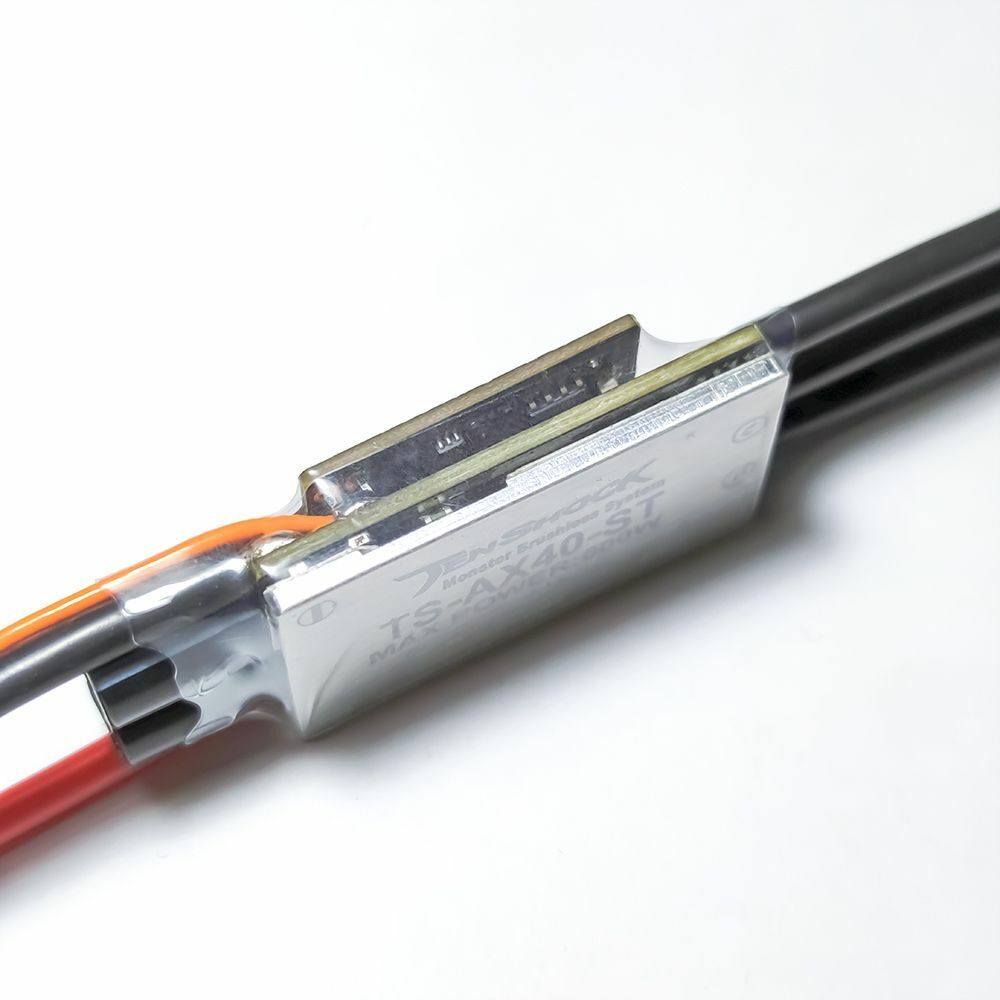

TS-AX40-ST Brushless ESC Electronic Speed Controller

Looking for the perfect ESC for your F5J / RES glider? The TS-AX40-ST from Tenshock can handle so much power with great linear output, perfectly matched with the Tenshock motors for a slow, level flight when trying to work that light lift during the launch window with the ability to deliver explosive power if you don't get that low level thermal and need to accelerate out to height in the last few seconds.

Price includes FREE P&P (UK only / not signed for).

Features:

  • TS-AX40-ST Brushless Electronic controller

  • Great linear control, lets you stand out in the competition.

  • Regular firmware upgrades

  • 80w super BEC output with 3 voltage options (6V / 7.2V / 8.4v)

  • With brake energy recovery & brake locking functions

        to ensure efficient use of the power specification

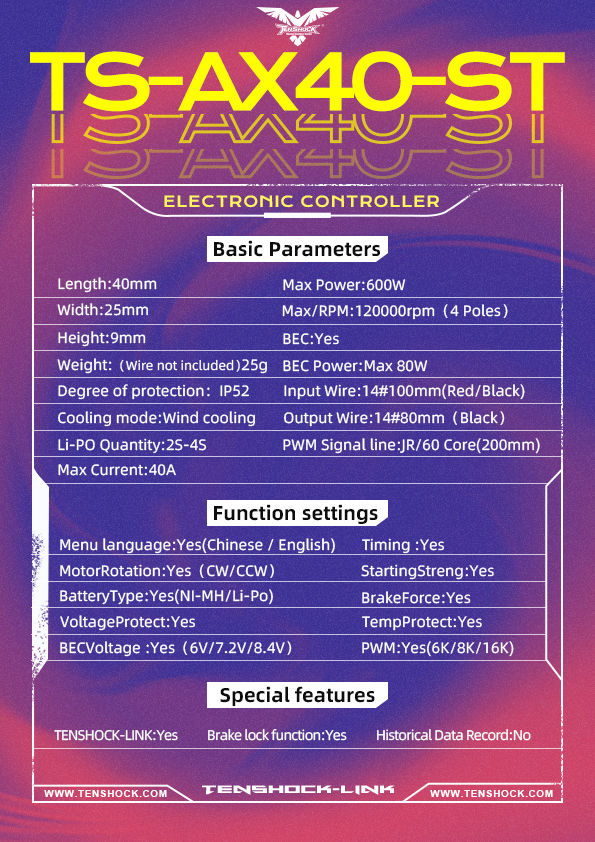

Specification:

  • Length:    40mm

  • Width:      25mm

  • Height:     9mm

  • Weight:    25g（Wire not included)

  • Degree of protection：           IP52

  • Cooling mode:                          Wind cooling

  • Li-PO cells：                             2S-4S

  • Max Current：                          40A

  • Max burst current:                   60A (5 seconds)

  • Max Power：                            600W

  • Max/RPM：                              120,000 rpm（4 Poles）

  • BEC：                                        Yes

  • BEC Power：                            Max 80W

  • Input Wire:                                 14#100mm (Red/Black)

  • Output Wire：                           14#80mm（Black）

  • PWM Signal line:                      JR/60 Core (200mm)

Function settings：

  • Menu language：                     Yes (Chinese / English)

  • Motor rotation：                       Yes (CW/CCW）

  • Battery type:                              Yes (NI-MH/LiPo)

  • Voltage protection：                Yes

  • BEC voltage ：                          Yes（6V/7.2V/8.4V）

  • Timing adjustments:                Yes

  • Starting Strength：                  Yes

  • Brake force：                            Yes

  • Temperature protection：      Yes

  • PWM：                                      Yes (6K/8K/16K)

Special features：

  • TENSHOCK-LINK：                 Yes

  • Brake lock function:                Yes

  • Historical Data Record:           No

What's included:

  • 40 amp ESC unit with JR rx plug

  • 3.5mm banana plugs & sockets (3 of each)

  • XT60H-M x 1
