GliderKeeper - Pico Altimeter

RC Equipment

£70.00

Out of stock

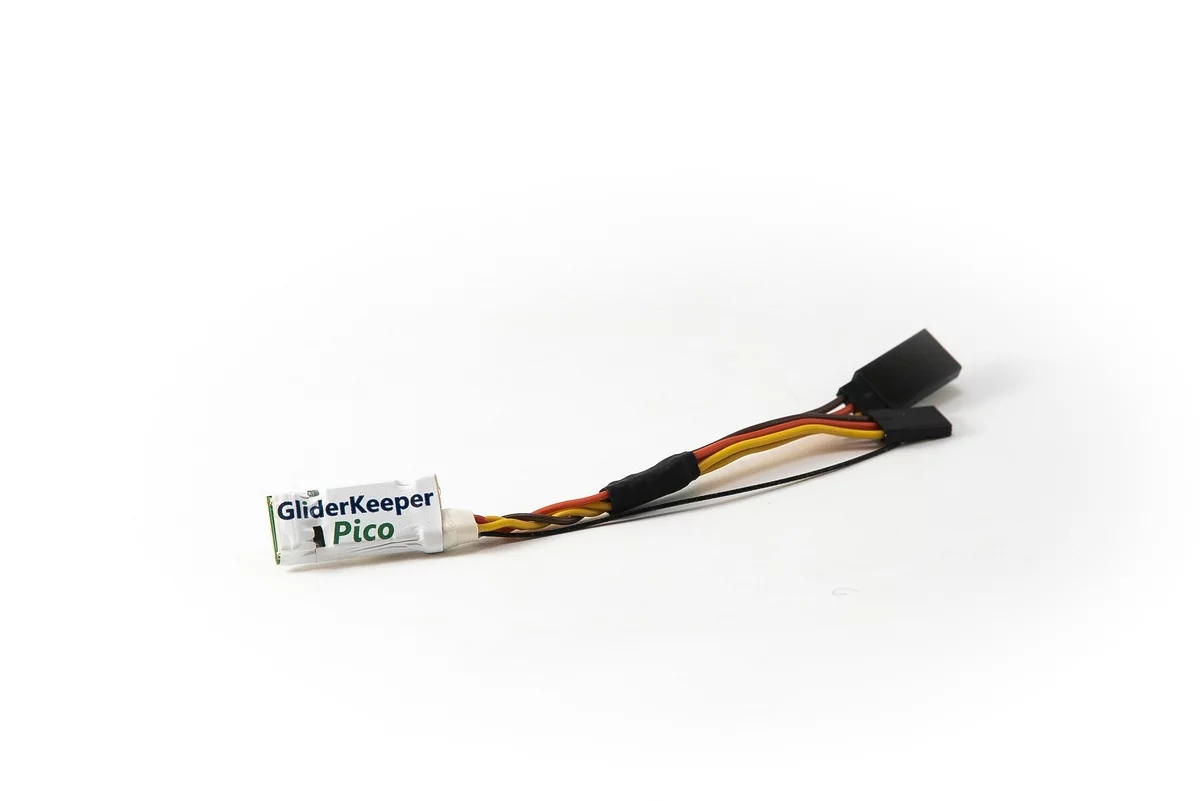

GliderKeeper - Pico unit only.

Pico + display bundle also available here:  https://skyhighrc.co.uk/gliderkeeper-pico-altimeter-and-display-unit-bundle

World’s First Altimeter with Flight Duration Option

Besides the latest technology barometer capsule, GliderKeeper features an accelerometer. Flight time is started upon throttle movement during launch, the same event as for motor timing in F5J rules.

Price includes FREE P&P (UK only / not signed for).

Features:

  • FAI approved for F5J international events

  • Altimeter with Flight Duration Option

  • Landing is captured by measuring the fuselage vibration on the model´s touchdown.

  • GliderKeeper Pico is the smallest AMRT available in the market.

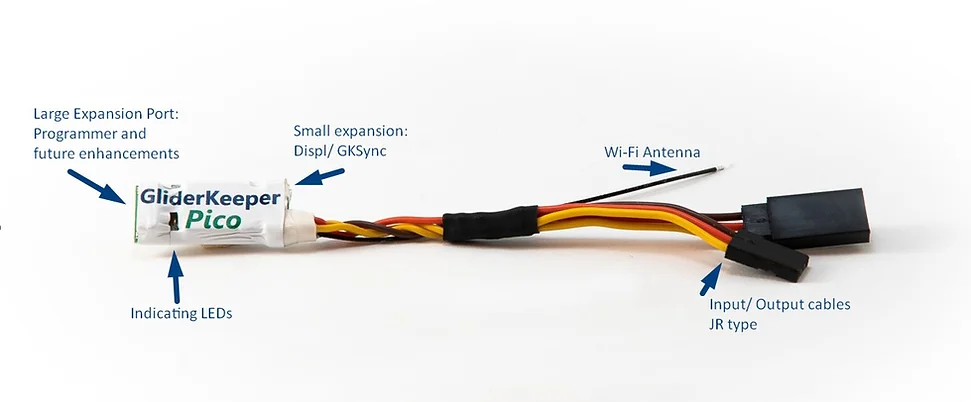

  • WIFI connection to mobile app for on-field use

Wi-Fi mode you can access the configuration that the loaded firmware allows, perform any housekeeping in the unit and eventually update the firmware or User Interface pages. No need for removals from the aeroplane. No more wear in JR connectors that have been giving us problems in the past

Specification:

  • Dimensions: 28,7 x 13 x 5,6 mm

  • Weight (including cable): 6,5 gr (of which cable is 4gr)

  • Power Supply: (min.) 4,5 V / (Max.) 17 V/ (Recomd. Wi-Fi AP) < 5,0V

  • Current consumption: Flight Mode <50 mA / Wi-Fi STA 120mA / Wi-Fi AP 170mA

  • Barometric Pressure Sensor: 300-1250 hPa, 8 Pa. Rel accuracy (0,6m)

  • Accelerometer Sensor: 12 bit/ + 8g range.

  • Memory storage: 255 flights or 5 Flight hours (circular buffer, 255 total flights max)

  • Wi-Fi: 802.11 b/g/n WPA/2

What's included:

  • GliderKeeper Pico altimeter

  • QR codes for easy setup of mobile App

Additional ancillaries are available by request

  • Display unit that plugs into Pico altimeter

  • Program units for USB connection to PC

  • Mobile flight terminal box for collecting pilot scores
