Graupner Kwik Fly Mk3 ~ RC Sports Aerobatic Model ~ Laser-cut Balsa/ply Rib Set

Model aircraft

£50.00

Graupner 'Kwik Fly Mk 3' ~ Laser-cut Rib Set

This is Not a full kit, no plan is included and additional materials will be required to finish the model.

The Graupner kit version of the original Phil Kraft 'Kwik Fli' Oct 1964 RC Modeler.

The KWIK FLY MK 3, designed by Phil Kraft, USA, won the '67 World Championship Contest in Corsica. The development of this model lasted several years and as a result, the KWIK FLY MK 3 is a fully developed and matured model design, which is bound to satisfy even the highest demands. Full materials list exploded design view and build instructions (German) are available (email) by request.

Model Specification:

  • Brand:                      Graupner designed Phil Kraft in 1968 - best nos 4629

  • Type:                        Radio control aerobatic model model 4/5 channel

  • Wing span:             60”

  • Length:                    51"

  • Wing Area:              657 sq in

  • AOW:                       >6 lbs

  • Motor:                     .6 cu in / Electric conversion

The box contains the following 38 laser-cut parts

  • 26 Wing ribs cut in hand-selected 2.4mm balsa

  • 16 Wing sub-ribs/parts cut in 2.4mm balsa

  • 6 assorted parts cut in 3.0mm lite ply.

  • Ribs are cut to suit the original metric spars.

  • Ribs are also cut with small servo cable holes to allow the use of separate wing servos.

  • The original holes for a central single linear servo are laser marked on the ribs if required.

  • No building plan is included - this is not a full kit.

The plan for this model can be purchased via this direct link:

Plans are available for this model from Derick Scott @ https://www.ebay.co.uk/usr/flyer21uk

Check out our eBay shop to view all model categories at: www.ebay.co.uk/str/skyhighrc

Price includes FREE 1st Class P&P (UK only / not signed for).

Please read the rest of the description below carefully as this is not a complete kit

  • The box contains laser-cut ribs/parts only.

  • This is not a complete model kit.

  • Additional materials will be required to complete the model.

  • All photos are for illustration purposes only.

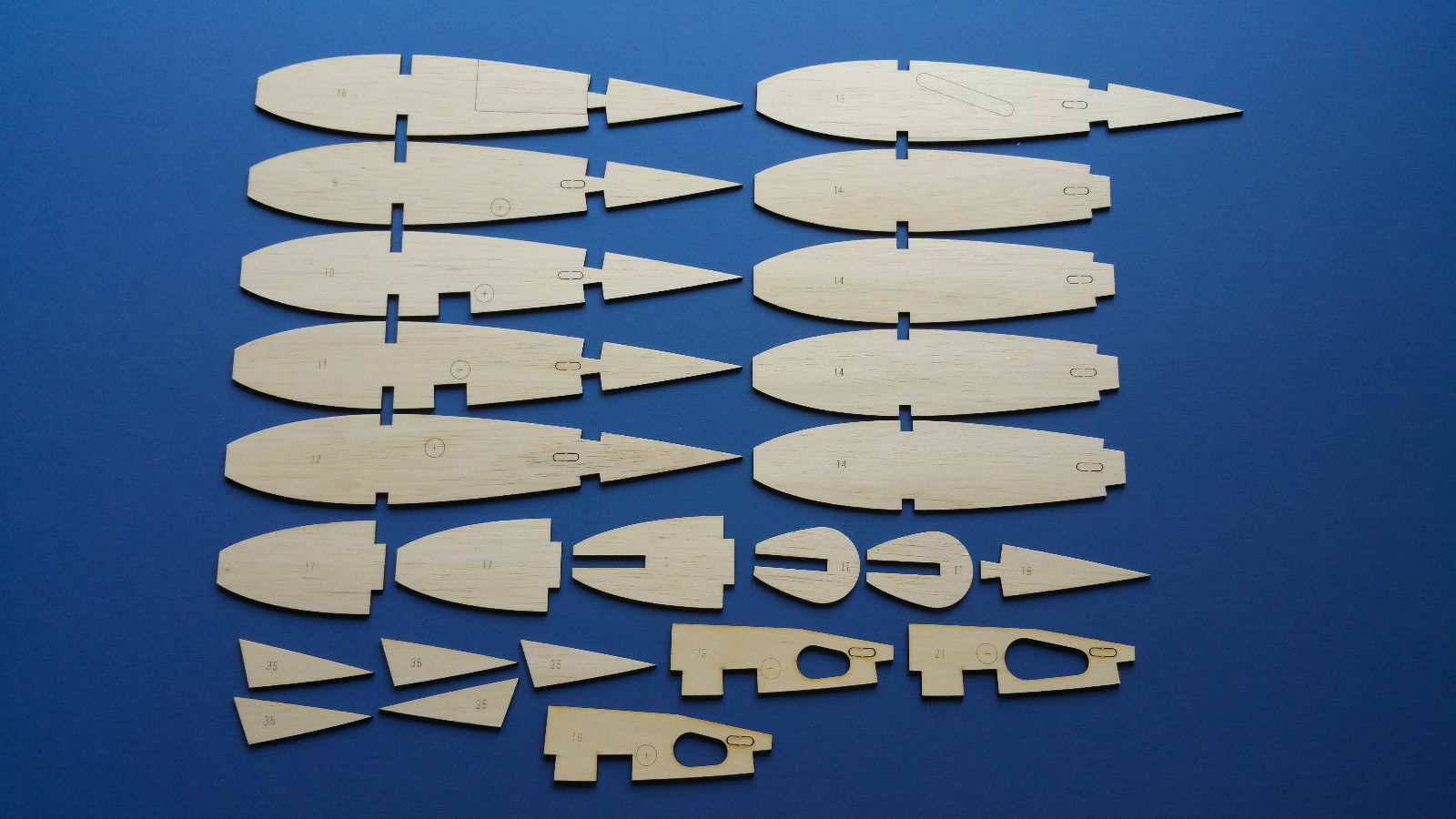

  • The photo of laser-cut parts (blue background) shows exactly what you will receive in the box

  • (for clarity, the picture shows ribs for one wing/stab only)

  • Building plans are not included

  • Plans can be obtained from https://model-plans.co.uk/
