Great Planes Ultra Sport 60 ~ Laser-cut RIB & Former SET

Model aircraft

£85.00

Great Planes Ultra Sport 60 ~ Laser-cut Rib & Fuselage Former Set

Note: This is not a complete kit. A plan is not included, and additional materials are required to complete the model.

The Ultra Sport 60 (OZ6177) first appeared in RCM Magazine in August 1989, and this set represents the design as originally kitted by Great Planes. The Ultra Sport 60 is renowned for being easy to build, totally predictable and smooth-flying, with very docile stall characteristics, making it an outstanding sport aircraft for pilots seeking a higher degree of precision. Its natural ability to track cleanly through manoeuvres means many pilots find they simply fly better when flying an Ultra Sport.

The original plan provides three undercarriage options—retracts, tail skid, and tricycle—and this rib set can be adapted for all three versions, with engraved reference markings to assist the builder in modifying the appropriate ribs to suit their chosen configuration.

Original Great Planes build instructions are available by email upon request.

Model Specification:

  • Brand:                 Great Planes

  • Design:               Jim Feldmann 1991

  • Type:                   RC Sports/Aerobatic model for 4-channel

  • Wing Span:         62”

  • Engine:               .61 power

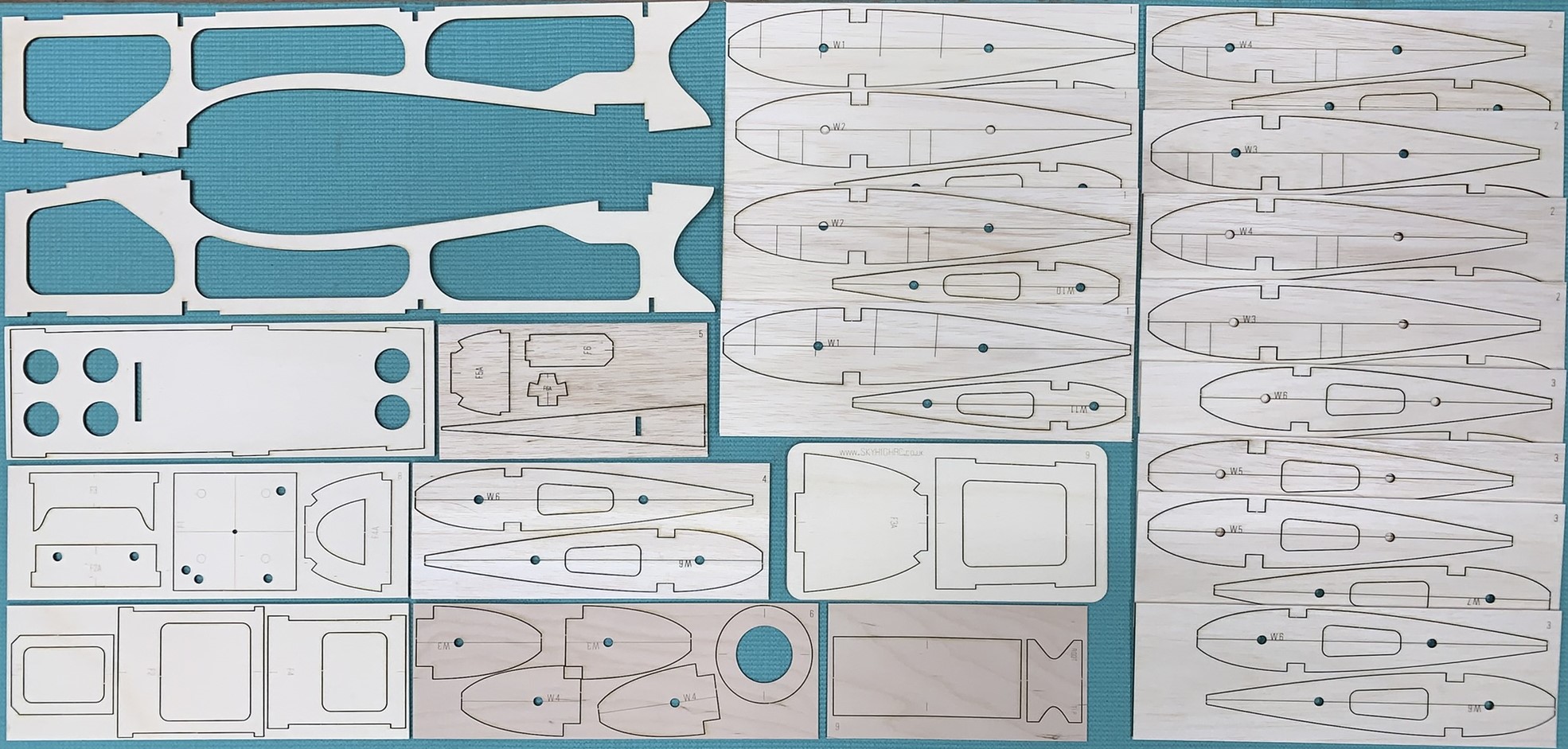

The custom-made box contains the following 49 quality laser-cut parts.

  • 26 Wing ribs cut from quality 2.4mm balsa

  • 4 undercarriage rib doublers & 1 spinner ring cut from 1.5mm aircraft ply

  • 1 wing brace and 1 leading edge template cut from 1.5mm aircraft ply

  • 4 formers cut from quality 3.2mm balsa

  • 8 fuselage formers cut from 3.0mm liteply

  • 2 fuselage side doublers cut from 3.0mm liteply

  • 1 chin block base & 1 fuse top plate cut in 3.0mm liteply

  • No plan included - This is not a complete kit

The plans for this model can be purchased via this direct link:

Plan free download link: https://outerzone.co.uk/plan_details.asp?ID=14943

Check out our eBay shop to view all model categories at: www.ebay.co.uk/str/skyhighrc

Please read the rest of the description below carefully as this is not a complete kit.

  • The box contains laser-cut ribs/parts only.

  • This is not a complete model kit.

  • Additional materials will be required to complete the model.

  • All photos are for illustration purposes only.

  • For clarity, photo 2&3 show all parts included

  • Building plans are not included

  • Plans can be obtained from https://model-plans.co.uk/

We have over 250 quality model rib sets/parts available. Please have a browse through all our eBay listings / latest news on Facebook @ Sky High RC

Quality laser-cut rib sets are also available for ...

Veron, Aeromodeller, APS, Graupner, Frog, Mercury, Radio-Modeller, Chris Foss, Carl Goldberg, Vic Smeed, KK, RC Powers, Airtronic’s, Flair, Carl Goldberg, Dave Boddington, iGull, Kamco, Hobby Shack, Sailplanes International, RCM&E
