Keil Kraft Cub ~ 20" FF Glider / Jetex ~ Laser-cut Balsa Wing RIB & parts SET

Model aircraft

£18.00

KK Cub - Laser-cut Rib & Parts Set

This is Not a full kit, no plan is included and additional materials will be required to finish the model.

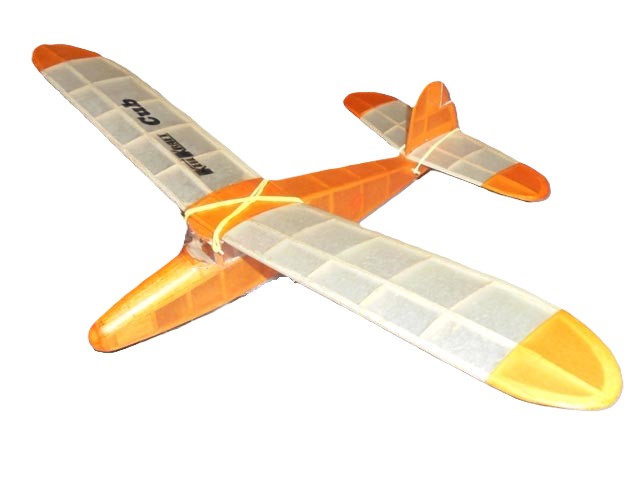

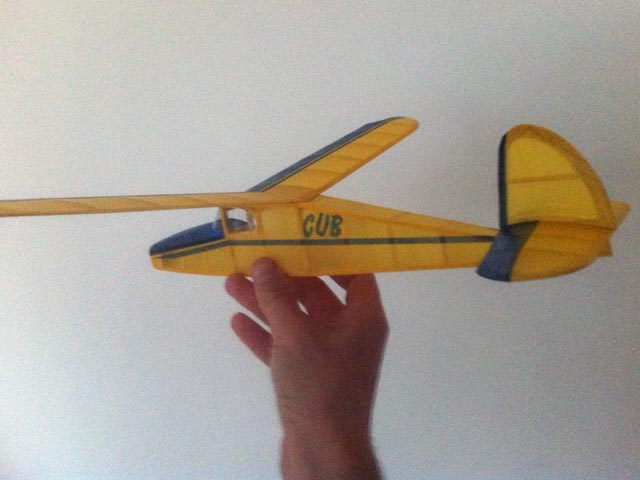

KK Cub. 20-inch span model can be built either as a towline glider or for Jetex 50 power. The Cub is particularly suited for beginners, as it has simple and conventional construction. Straightforward construction with quality laser-cut parts for all primary shaped parts, to aid accurate and speedy building, making an ideal beginner's flying model. The cub can be built as a tow line glider or easily modified by the more experienced builder, to take a lightweight electric motor and 3-channel R/C equipment for indoor or light weather outdoor flying.

The only difference between the Jetex and the glider versions is the fuselage - the wings, tailplane and fin being identical.

Model specification:

  • Brand:                    Keil Kraft

  • Design:                  Bill Dean

  • Type:                     FF Towline Glider or Jetex

  • Wing span:            20"

  • Engine:                 Jetex 50 power

The following 50 quality laser-cut parts are included in the box.

  • 14 x wing ribs laser-cut in hand-selected 1.5 mm hand selected Balsa

  • 6 x tailplane ribs cut in 1.5mm Balsa

  • 10 x wing & tailplane tip parts

  • 2 x ply wing braces laser-cut in 1.5 aircraft ply

  • 4 Fuselage formers cut in 1.5 balsa (laminated to achieve 2.4mm thickness)

  • 5 fuselage formers cut in 1.5mm balsa

  • 5 x nose block formers

  • 1 x fin cut with cross grain support cut in 1.5mm balsa

  • No building plan is included. This is not a complete kit

The plan for this model can be purchased via this direct link: https://www.ebay.co.uk/itm/135483751879

Free download plan here: https://outerzone.co.uk/plan_details.asp?ID=1349

You can also view all models in our eBay store at www.ebay.co.uk/str/skyhighrc

Price includes FREE P&P (UK only / not signed for).

Please read the rest of the description below carefully as this is not a complete kit.

  • The box contains laser-cut ribs/parts only.

  • This is not a complete model kit.

  • Additional materials will be required to complete the model.

  • All photos are for illustration purposes only.

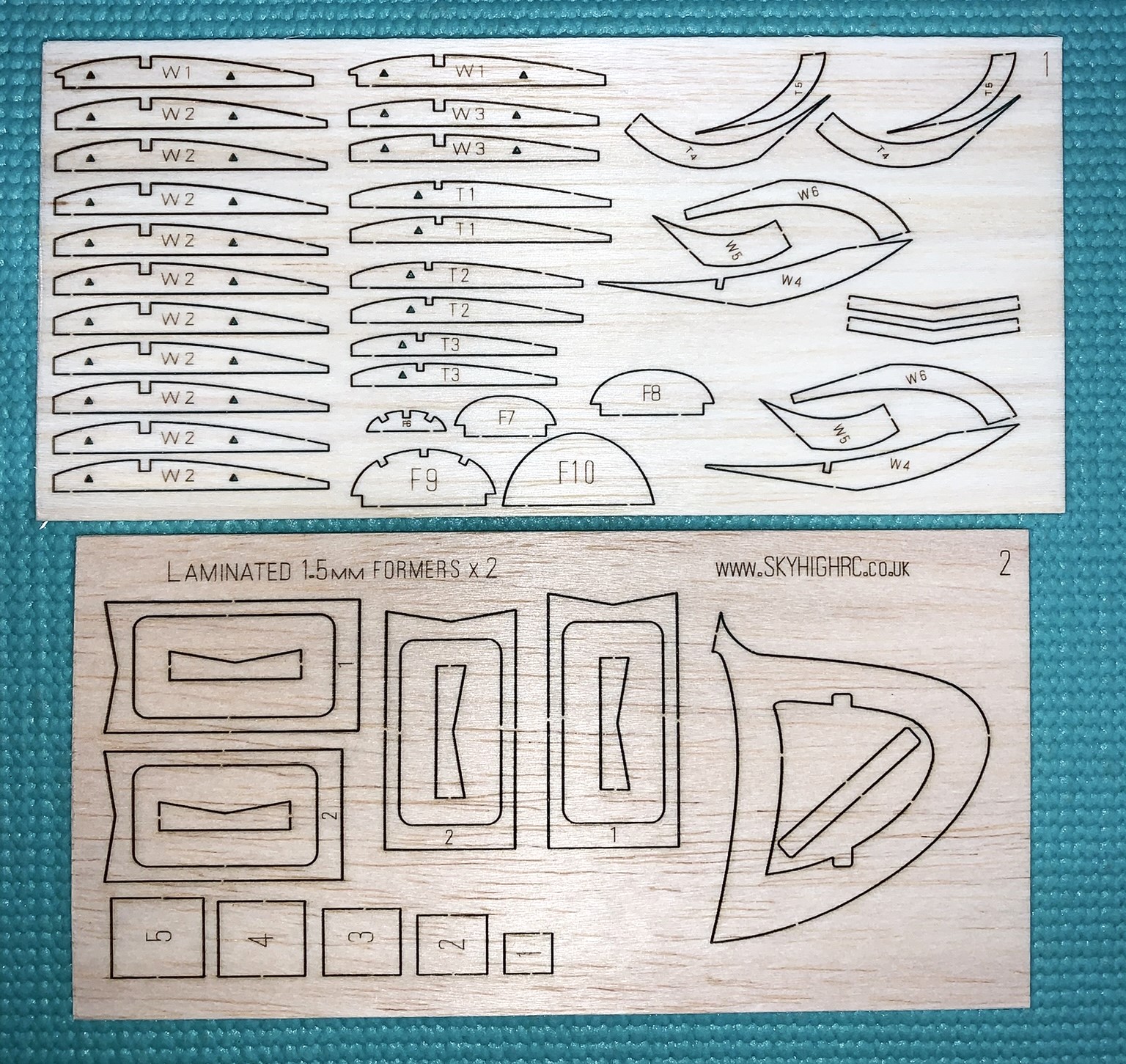

  • The photo of laser-cut parts (Green background) shows exactly what you will receive in the box

  • Building plans are not included

Plans can be obtained from https://model-plans.co.uk/

We have over 200 quality model rib sets/parts available, please have a browse through all our eBay listings / latest news on Facebook @ Sky High RC

 Quality laser-cut rib sets are also available for ...

Veron, Aeromodeller, APS, Graupner, Frog, Mercury, Radio-Modeler, Chris Foss, Carl Goldberg, Vic Smeed, KK, RC Powers, Airtronic’s, Flair, Carl Goldberg, Dave Boddington, iGull, Kamco, Hobby Shack, Sailplanes International, RCM&E
