KK Micro Super ~ 25" RC Sports Model by Dave Boddington - Laser-cut RIB SET

Model aircraft

£25.00

KK Micro Super - Laser-cut Rib Set

This is Not a full kit, no plan is included and additional materials will be required to finish the model.

A scaled-down version of the classic Keil Kraft Super 60 at only 25.5in span, for single channel or two function RC and small diesel engines, Cox Pee Wee and electric conversion. Construction follows the original Super Sixty format.

Micro Super will sharpen your flying wits on this miniature Super Sixty!

We now offer Rib sets for all three KK Super 60 size versions: original KK Super 60 (63" span), Mini Super (45" DB version) & Micro Super (25" DB version)

Model specification:

  • Brand:                    Keil Kraft / RCME

  • Design:                  Dave Boddington (1987)

  • Type:                     Sports RC sport model

  • Wing span:            25"

  • Engine:                 .020 - .030

The following 30 quality laser-cut parts are included in the box.

  • 21 x wing ribs laser-cut in hand-selected 1.5 & 2.4mm Balsa

  • 2 x ply wing braces laser-cut in 1.5 aircraft ply

  • 3 Fuselage formers cut in 1.5 and 2.4mm balsa (laminated to achieve 6.3mm thickness)

  • 4 fuselage formers cut in 1.5mm aircraft ply (the plan states 1mm but we have used 1.5mm)

  • Ribs are cut with small vents to reduce 'ballooning' when film-covered

  • No building plan is included. This is not a complete kit

The plan for this model can be purchased via this direct link: https://www.ebay.co.uk/itm/156502427181

Free download plan here: https://outerzone.co.uk/plan_details.asp?ID=3274

You can also view all models in our eBay store at www.ebay.co.uk/str/skyhighrc

Price includes FREE P&P (UK only / not signed for).

Please read the rest of the description below carefully as this is not a complete kit.

  • The box contains laser-cut ribs/parts only.

  • This is not a complete model kit.

  • Additional materials will be required to complete the model.

  • All photos are for illustration purposes only.

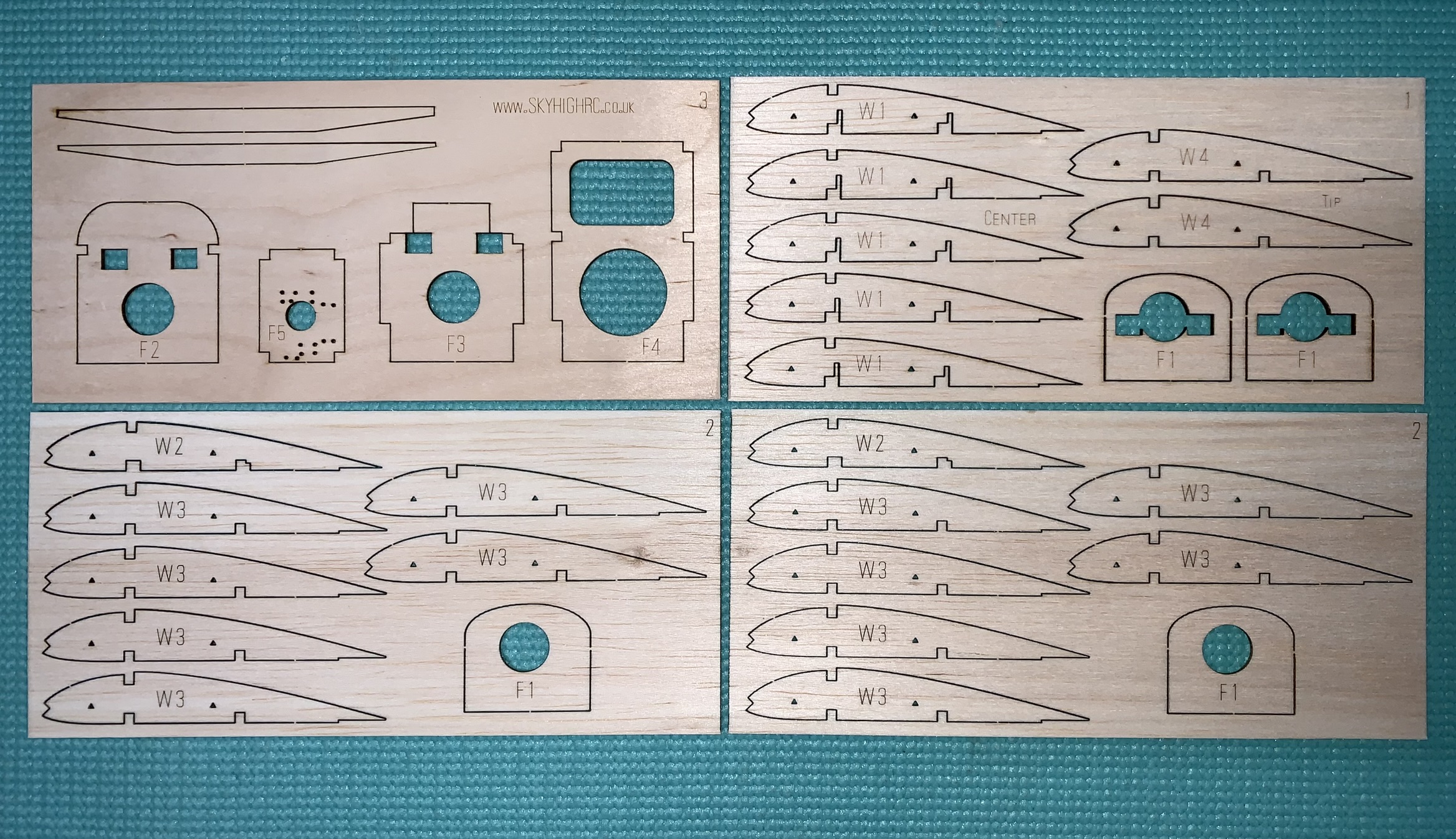

  • The photo of laser-cut parts (blue background) shows exactly what you will receive in the box

  • Building plans are not included

  • Plans can be obtained from https://model-plans.co.uk/
