Mercury Crusader - Control Line Model ~ Laser-cut Balsa Wing RIB & Former SET

Model aircraft

£65.00

Mercury 'Crusader'  Laser-cut Part Set

Note: This set is not a complete kit. A plan is not included, and additional materials are required to complete the model.

These parts are for the classic Mercury Models Crusader control-line model, designed by Bill Morley and one of our best-selling part kits.

The drawing we used was by Tony Johnson, dated November 2019. Some changes were made to this later drawing to improve the construction, notably the sheet trailing edge up to the Aileron strip wood intersection. If building against the original kit plan, you can easily retrofit this trailing-edge sheet option to your design.

Model Specification:

  • Brand:              Mercury Models designed by Bill Morley ca 1961.

  • Type:                Control line stunt model

  • Wing-span:     56”     1.42m

  • Length:            30”

  • Wing                Area: 628 sq in.

  • Weight:           48 oz

  • Engine:           .35

The box contains 100 of the following laser-cut parts

  • 68 x wing ribs cut in 1.5mm quality balsa

  • 20 x fuselage formers + 4 part ribs cut in 3.0mm quality balsa

  • 8 x fuselage formers cut in 1.5mm quality balsa (laminated to 3mm)

  • No plan included. This is not a complete kit.

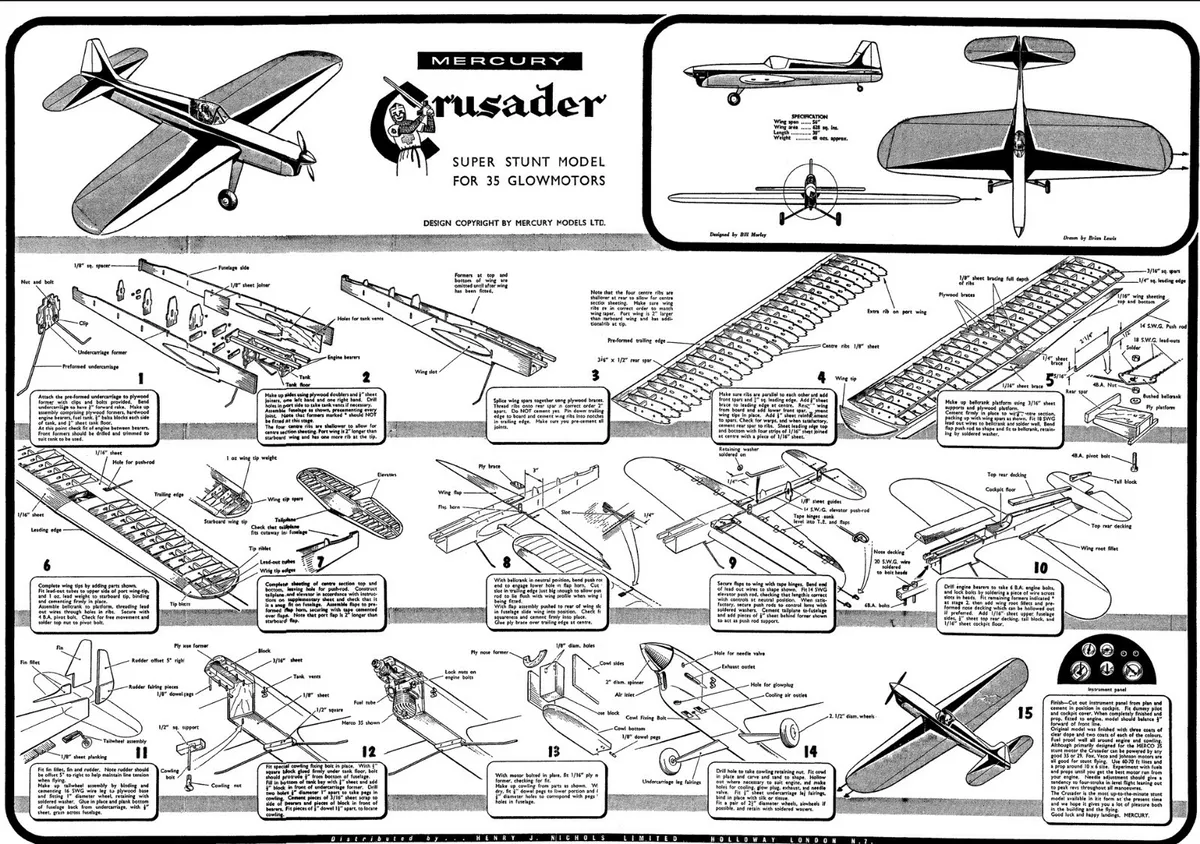

The plan for this model can be purchased via this direct link: https://www.ebay.co.uk/itm/156089420755

Price includes FREE P&P (UK only / not signed for).

Please read the rest of the description below carefully as this is not a complete kit.

  • The box contains laser-cut ribs/parts only.

  • This is not a complete model kit.

  • Additional materials will be required to complete the model.

  • All photos are for illustration purposes only.

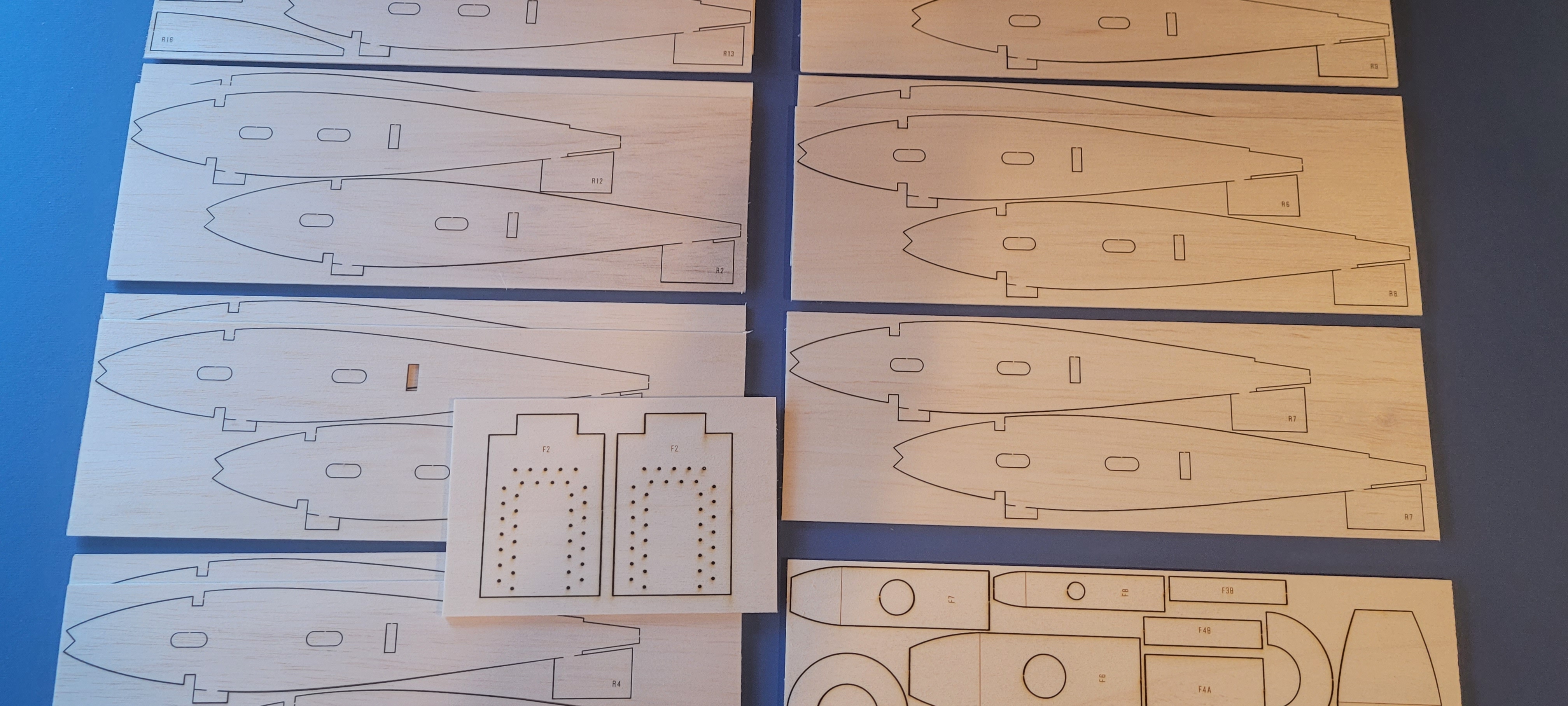

  • The photo of laser-cut parts (blue background) shows exactly what you will receive in the box

  • Building plans are not included

  • Plans can be obtained from https://model-plans.co.uk/
