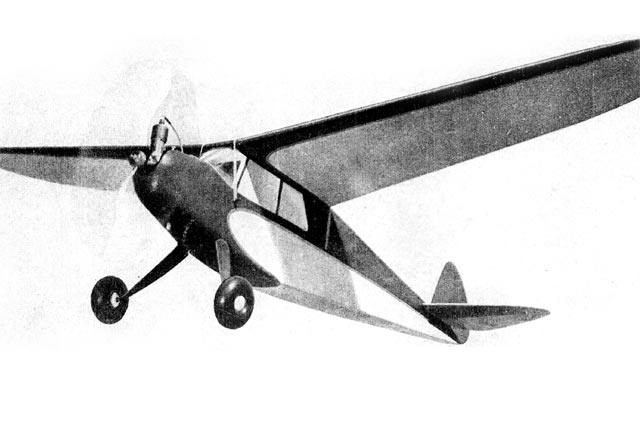

Mercury 'Wizard' - Vintage Free-flight Power Model - Laser-cut Balsa/Ply Parts Set

Model aircraft

£40.00

Mercury 'Wizard' ~ Laser-cut Rib Set

These are for the original F/F Mercury Wizard for 0.049’s with simple rugged construction.

Model Specification:

  • Brand:               Mercury Models

  • Type:                 Free flight power model

  • Wing-span:      32”

  • Engine:             0.5cc/0.49 cu

The box contains 56 of the following laser-cut parts

  • 15 x wing ribs cut in 1.5mm & 2.4mm quality balsa

  • 9 x tail ribs cut in 1.5mm & 2.4mm quality balsa

  • 3 fuselage formers + 1 dihedral gauge cut in 3mm balsa

  • 5 fuselage formers cut in 2.4mm quality balsa

  • 12 assorted parts cut 3.00 balsa

  • 8 fuselage sides cut 2.4mm quality balsa

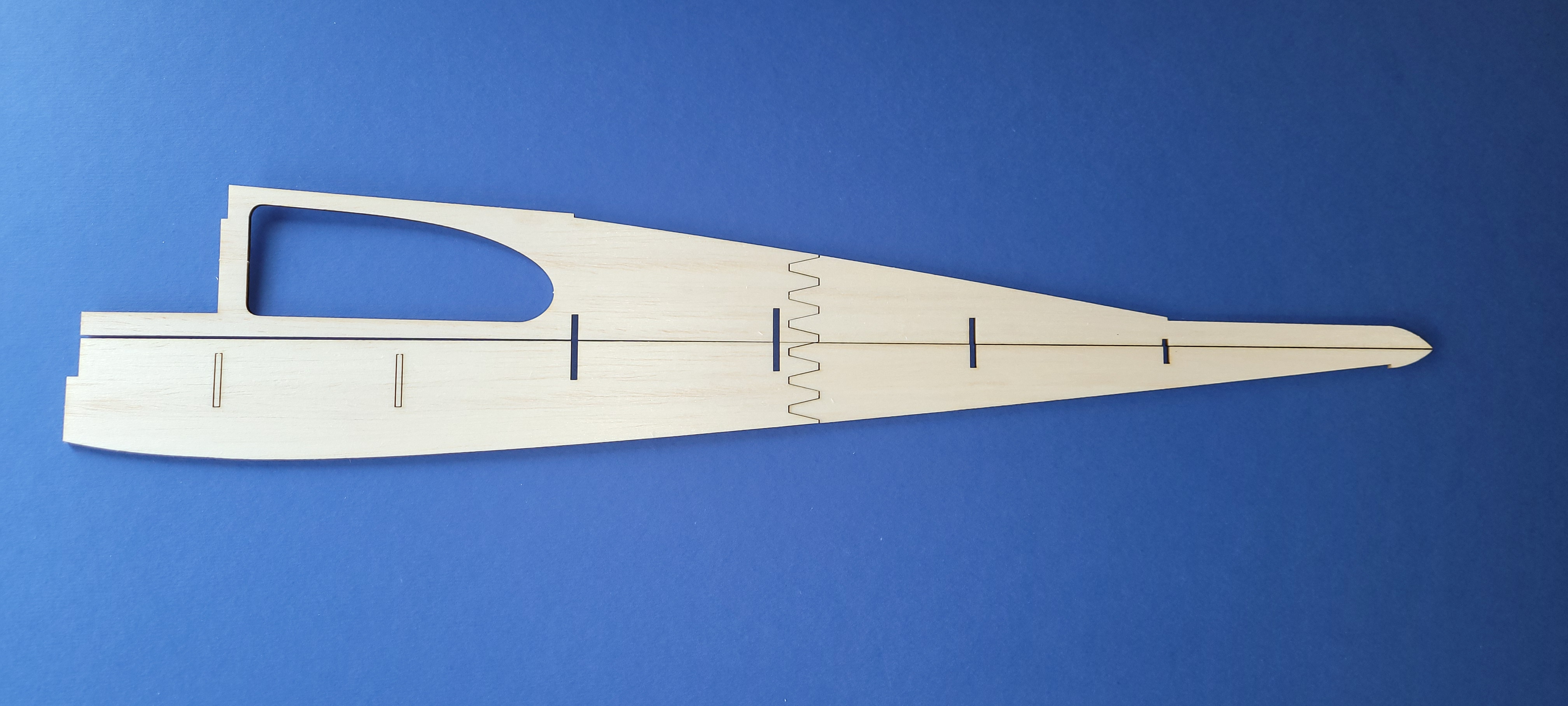

  • (fuselage sides are cut with Shark-tooth joints as shown in the pic).

  • 2 wing braces + 1 former cut in 1.5mm aircraft ply

  • No plan included. This is not a complete kit.

The plan for this model can be purchased via this direct link:

https://www.ebay.co.uk/itm/156236768592?itmmeta=01HZ9Z0G17D9YPPCQ6R6CNDX41&hash=item24606fe550:g:yNAAAOSwFUBmWwB0&itmprp=enc%3AAQAJAAAA0ACxo1paklCdZF4AN8b9WlRCGy5OVMSTq1aHmM%2F4Y1I9bIjqdpIATYMZTzeE3OJuvFLrmX8eYLlUSwtBwV0OTvCqN7RcQ%2Fs5E2X0sZrvu1uMbUAG01ZEWrX0W3mNsN6%2BrSExt%2B8g1cIa%2BjUQSUBJoBypuhILjMWeN0onW84kW6M27UQVlGXxJAf8SvTrQUX%2Bkq3cuwyMzdKm7N4PzZER2oXHXEeHqZ7S8Hvdx4Lf93ls0wzlFRoVs%2F0c3XoVFtERd2UktRgQinYtEFnXictutLs%3D%7Ctkp%3ABk9SR9qAgr_6Yw

Price includes FREE 1st Class P&P (UK only / not signed for).

Please read the rest of the description below carefully as this is not a complete kit.

  • The box contains laser-cut ribs/parts only.

  • This is not a complete model kit.

  • Additional materials will be required to complete the model.

  • All photos are for illustration purposes only.

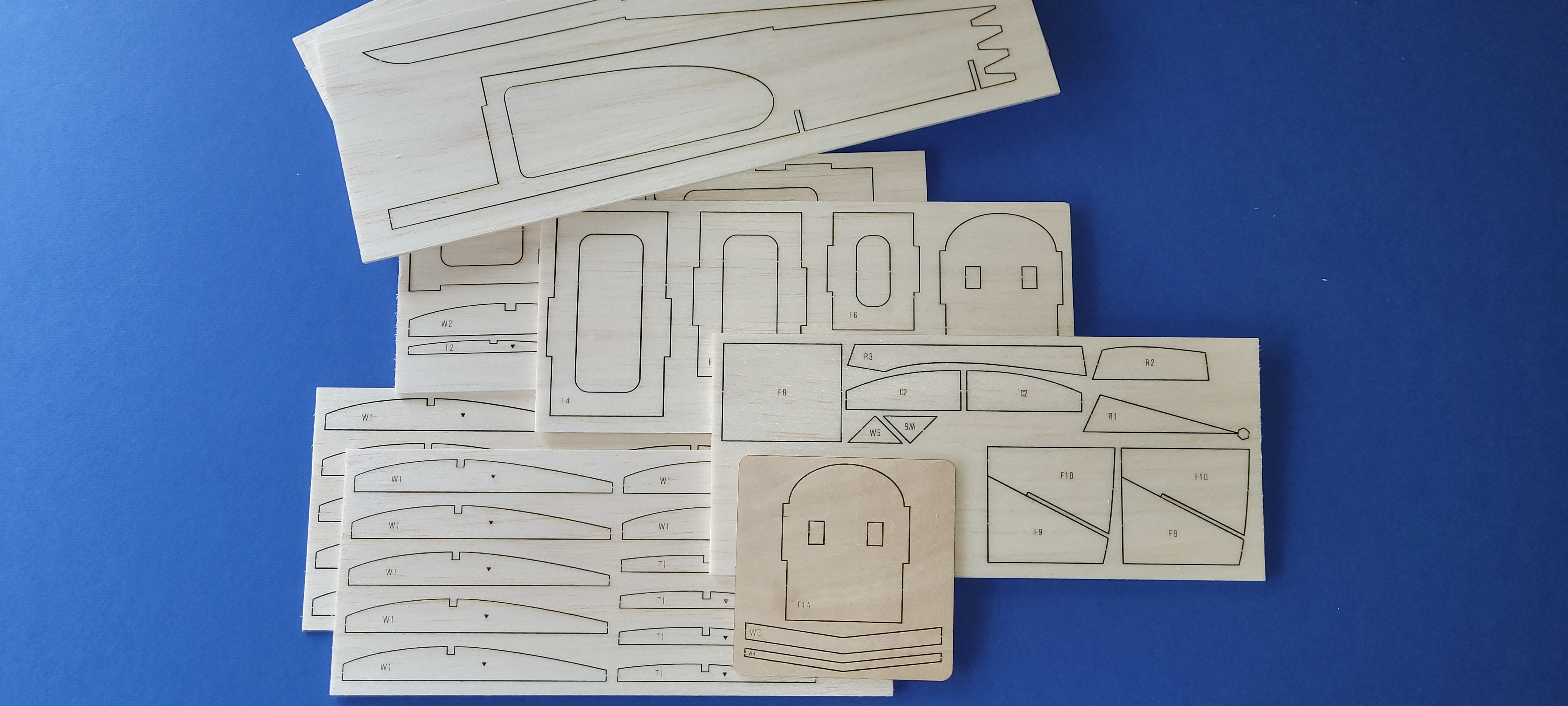

  • The photo of laser-cut parts (blue background) shows exactly what you will receive in the box

  • Building plans are not included

  • Plans can be obtained from https://model-plans.co.uk/
