Olympic II - 100" All Wood Sailplane by Airtronics- Laser-cut Balsa/Ply Parts Set

Model aircraft

£60.00

Airtronics ‘Olympic II' ~ Laser-cut Parts Set

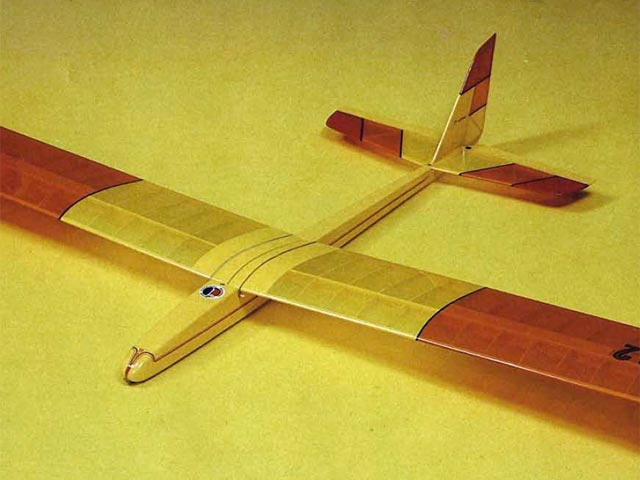

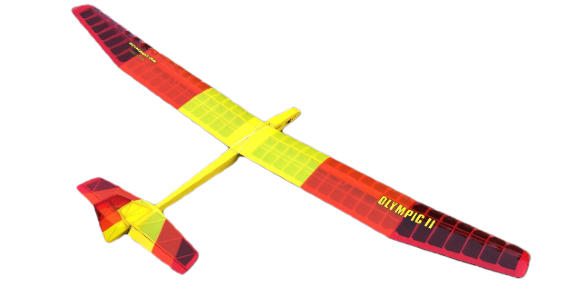

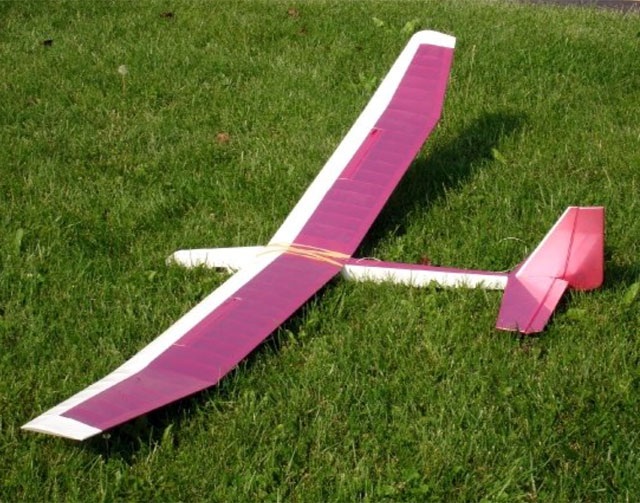

These (large set of :-) parts are for the famous 1970's Airtronics Olympic II (Olly II) 100” span all-wood glider by Lee Renaud.

The Olympic ll sailplane was designed for quick & easy building and quickly established itself as one of the USA most popular R/C sailplanes. Although designed as a trainer, the long list of contest wins proves that the design has been very competitive in Standard Class contests. Many sailplane fliers learned to fly with an Olympic, then went on to become contest threats and Olly ll flies and handles even better than the original Olympic version. Further information on this model is available (email) upon request.

Model Specification:

  • Brand:                      Airtronics - designed by Lee Renauld 1976

  • Type:                        Radio control sailplane model - 2/3 channel

  • Wing span:             100”

  • Wing Area:              928 sq in.

  • Airfoil:                      Flat bottom 10%

  • Length:                    49"

  • Wing loading:         5.5-6.0 oz / sq ft

The box contains the following 59 laser-cut parts

  • 46 Wing ribs cut in hand-selected 2.4 balsa

  • 3 fuselage formers cut in 3.0mm lite ply

  • 4 assorted wing parts cut in 1.5mm aircraft ply

  • 2 wing ribs cut in 1.5mm aircraft ply

  • 4 wing braces cut in 1.5mm aircraft ply

  • Wing joint ribs are laminated from 2 x 2.4mm ribs rather than the original 3/16”.

  • Ribs are cut with servo cable holes and elsewhere with small 'vent' holes to alleviate the 'ballooning' issue when film covering.

  • The servo holes allow fitting 2 x 9g servos as spoilers/airbrakes.

  • Other modifications include cut ribs to suit airbrake fitting and aligned holes for wing joining.

  • No building plan is included - this is not a full kit.

The plan for this model can be purchased via this direct link:

Plans are available for this model from Derick Scott @ https://www.ebay.co.uk/usr/flyer21uk

Check out our eBay shop to view all model categories at: www.ebay.co.uk/str/skyhighrc

Price includes FREE 1st Class P&P (UK only / not signed for).

Please read the rest of the description below carefully as this is not a complete kit.

  • The box contains laser-cut ribs/parts only.

  • This is not a complete model kit.

  • Additional materials will be required to complete the model.

  • All photos are for illustration purposes only.

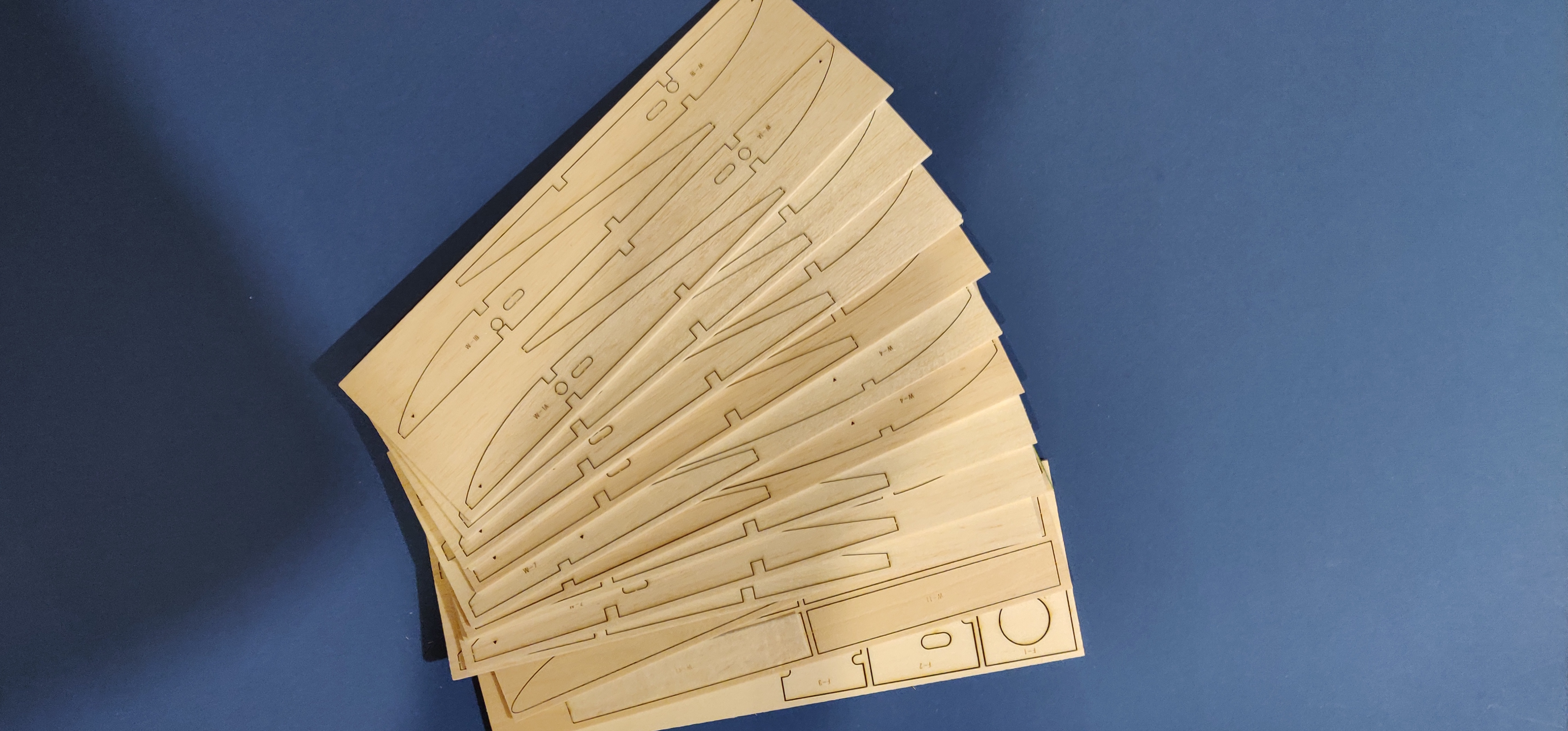

  • The photo of laser-cut parts (blue background) shows exactly what you will receive in the box

  • Building plans are not included

  • Plans can be obtained from https://model-plans.co.uk/
