Phase 2 by Chris Foss ~ RC Aerobatic Slope Soarer ~ Laser-cut Balsa Ply Parts Set

Model aircraft

£34.00

Phase 2 Slope Soarer ~ Laser-cut Parts Set

This is Not a full kit, no plan is included and additional materials will be required to finish the model.

These ribs are drawn/cut to a constant 12% profile thickness along the tapered planform for optimal performance. The plan shows 12% to 13% at tip!

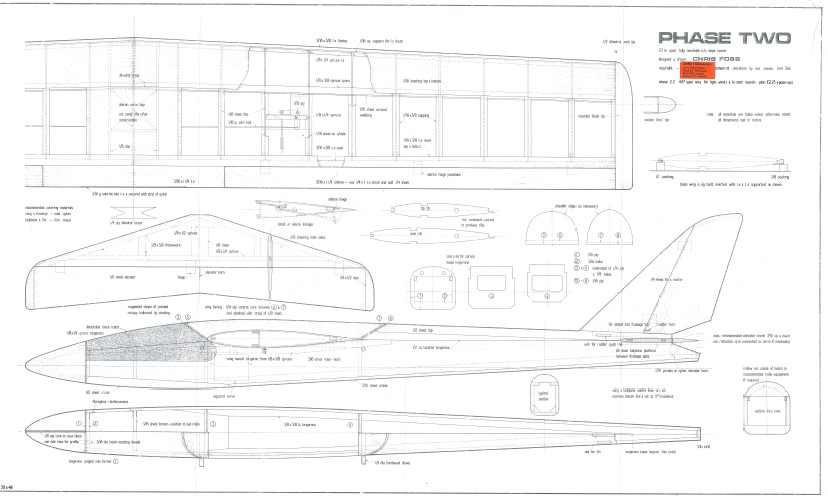

Phase 2 Slope Soarer plans are available from Chris Foss website

http://www.chrisfoss.co.uk/#/constructional-plans/4538948935

Model specification:

  • Brand:                   Chris Foss

  • Type:                     Fully aerobatic RC Slope soarer

  • Wing span:           57”

The box contains: (48 laser-cut parts in quality balsa/ply)

  • 28 laser-cut ribs cut in hand-selected 1.5mm quality balsa

  • (two W2 1/16 ribs laminated to create 1/8 thickness)

  • 1 wing rib (W2) cut in 3.0mm (1/8) balsa

  • (Wing spars are cut for imperial sizes 1/8 x 3/8)

  • 2 fuselage formers (F3 & F4) cut in 3.0mm balsa

  • 9 Fuselage formers cut in 1.5mm Aircraft ply

  • 2 laser cut servo plates cut in 1.5mm aircraft ply

  • 2 laser cut servo mounts cut in 3mm lite ply

  • 1 fuselage former cut in 3mm lite ply

  • 1 fuselage nose block core cut in 3.0mm lite ply

  • 2 wing braces cut in 3mm lite ply (laminated to make 1/4 brace)

  • (F2 is laminated 3.0+1.5 ply instead of original 3/16 balsa original)

  • Ribs are cut to suit a 6mm diameter drinking straw servo cable duct.

  • No plan included. This is not a complete kit.

Chris Foss plans are available from his website

http://www.chrisfoss.co.uk/#/constructional-plans/4538948935

Check out our eBay shop to view all model categories at: www.ebay.co.uk/str/skyhighrc
Price includes FREE 1st Class P&P (UK only / not signed for).

Please read the rest of the description below carefully as this is not a complete kit.

  • The box contains laser-cut ribs/parts only.

  • This is not a complete model kit.

  • Additional materials will be required to complete the model.

  • All photos are for illustration purposes only.

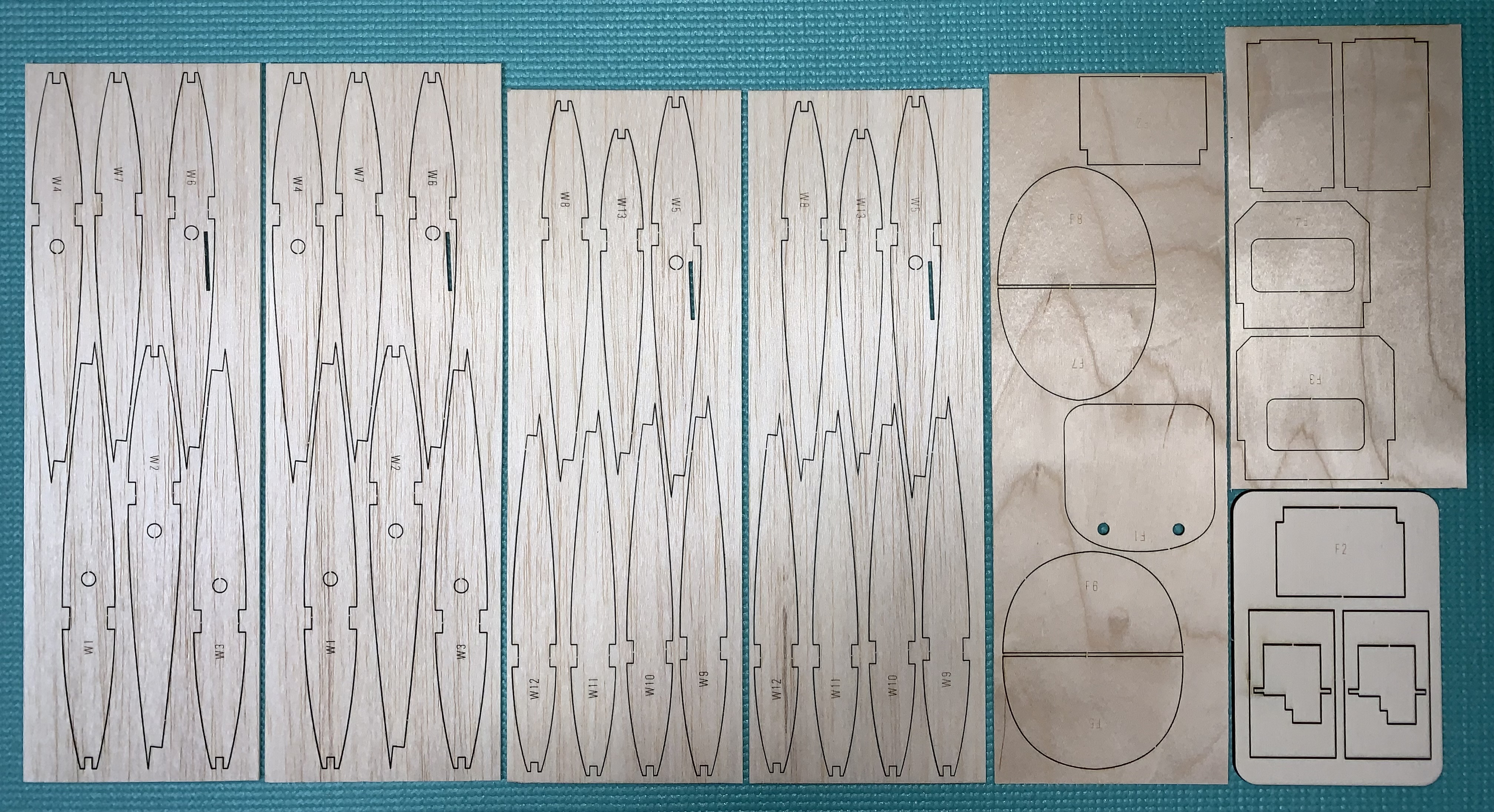

  • Photo 2 of laser-cut parts (green background) shows exactly what you will receive in the box (Except wing braces)

  • Building plans are not included
