Quicksilver by Dave Hardaker ~ RC Slope Aerobatic Model ~ Laser-cut Balsa Ply Parts Set
Model aircraft
£32.00
Quicksilver ~ Laser-cut Parts Set
A top aerobatic slope soarer design from R/C aerobatic champion, Dave Hardaker. Straightforward construction and attractive 62-inch (1570mm) span swept back wing layout make this a winner on any slope.
Supplementary information is available (email) upon request.
Model Specification:
From: RCM&E October 1978
Design: Dave Hardaker
Type: RC Slope Aerobatic Model 3/4 channel
Wing span: 62"
Wing section: Eppler 374
The box contains 35 laser-cut parts as follows:
26 wing ribs parts cut from hand-selected 2.4mm balsa
2 servo mounts cut in 3.0mm lite ply
2 tailplane ‘scabs’ cut in 1.0mm aircraft ply
5 fuselage formers cut in 3mm and 6mm liteply
Ribs are true Eppler 374 section
Ribs are cut with small knock-out servo cable holes to suit modern twin servos rather than single servo
Small vent holes are also cut to stop the ‘ballooning’ issue when film covering.
6mm liteply is used in place of the composite ply/balsa originals and also replaces the 3mm F1
No plan included.
This is not a complete kit.
Plan can be purchased directly for this model via this link.
Plans are available for this model from Derick Scott @ https://www.ebay.co.uk/usr/flyer21uk
You can also view all models in our eBay store at www.ebay.co.uk/str/skyhighrc
Price includes FREE 1st Class P&P (UK only / not signed for).
Please read the rest of the description below carefully as this is not a complete kit.
The box contains laser-cut ribs/parts only.
This is not a complete model kit.
Additional materials will be required to complete the model.

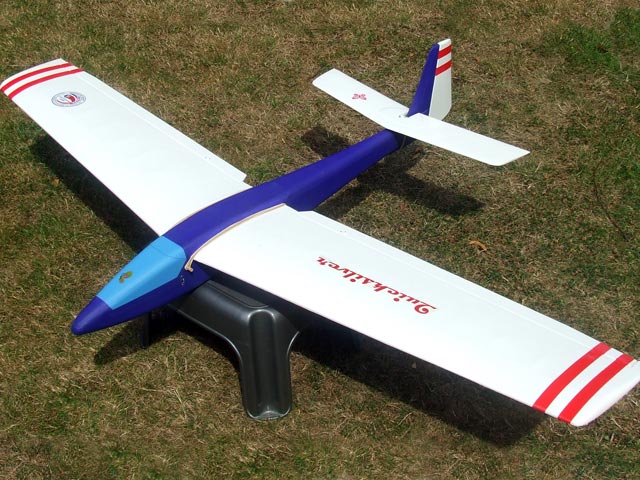

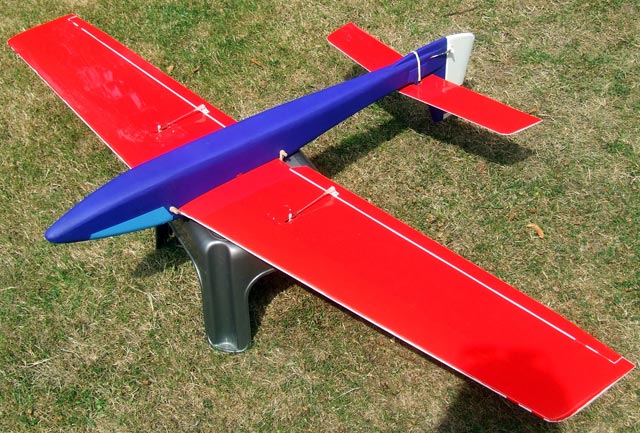

All photos are for illustration purposes only.
Ribs for one wing are shown for clarity.

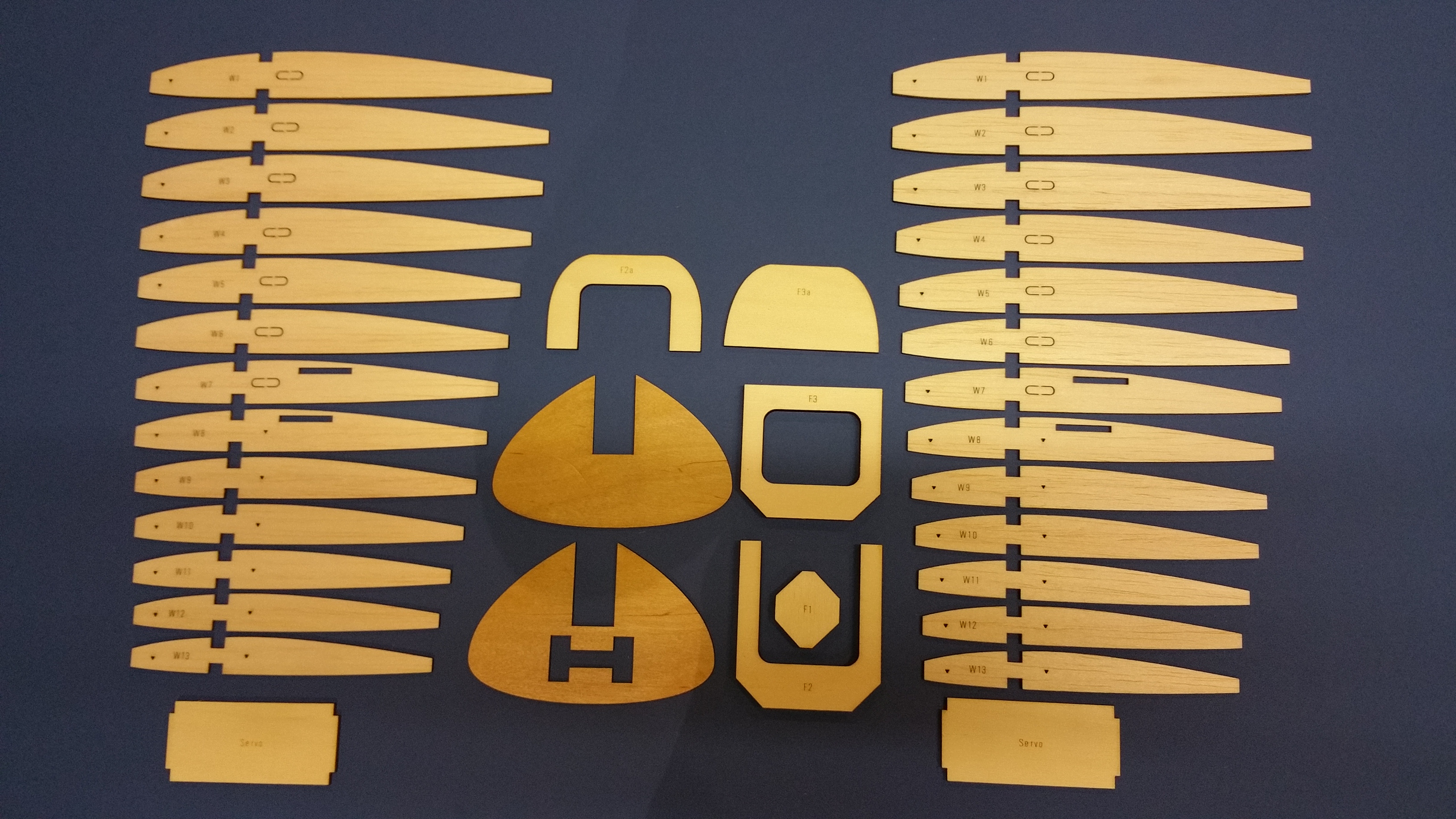

The photo of laser-cut parts (blue background) shows exactly what you will receive in the box
Building plans are not included
Plans can be obtained from https://model-plans.co.uk/
