Soarcerer by Dave Hughes ~ 52" RC Slope Soarer ~ Laser-cut Wing RIB SET

Model aircraft

£26.00

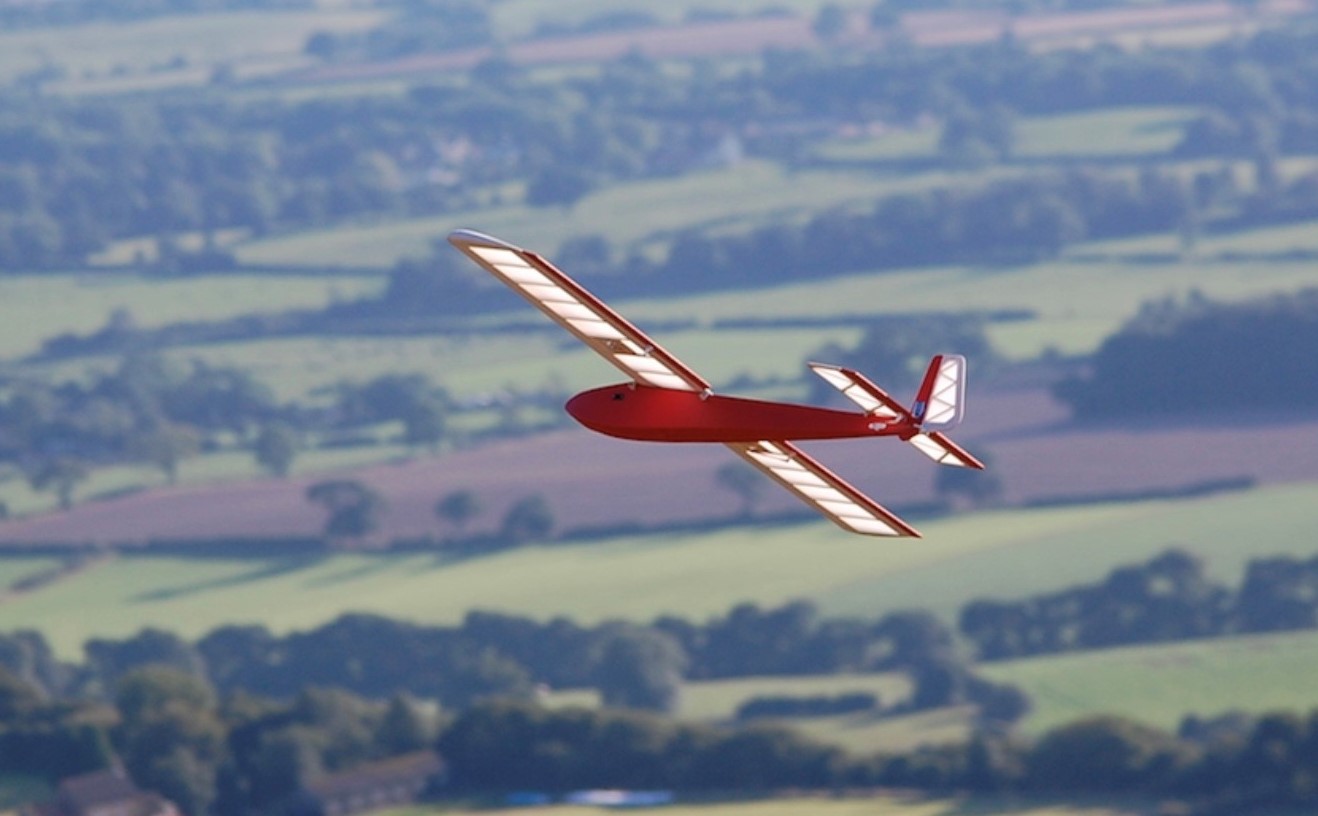

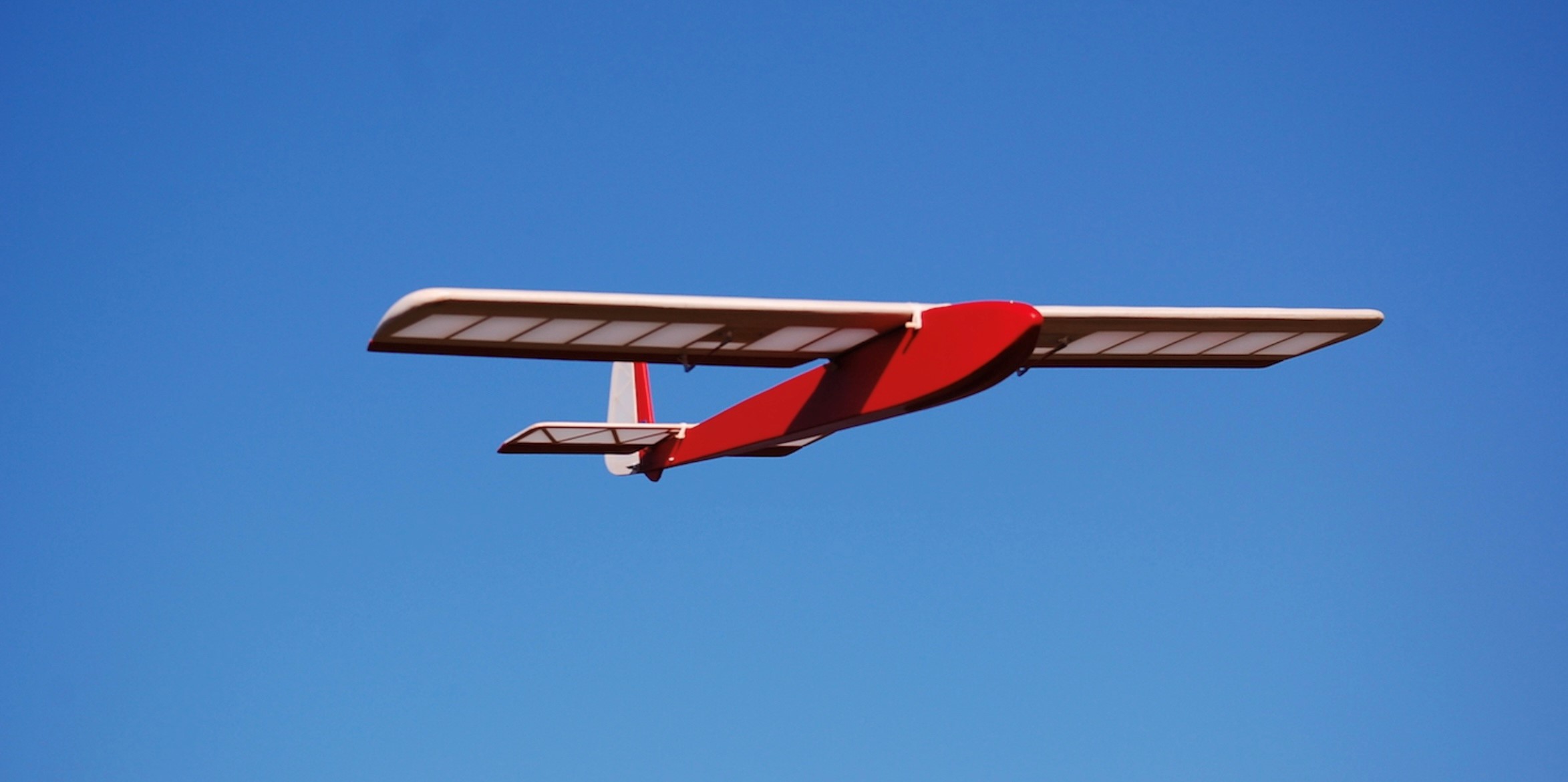

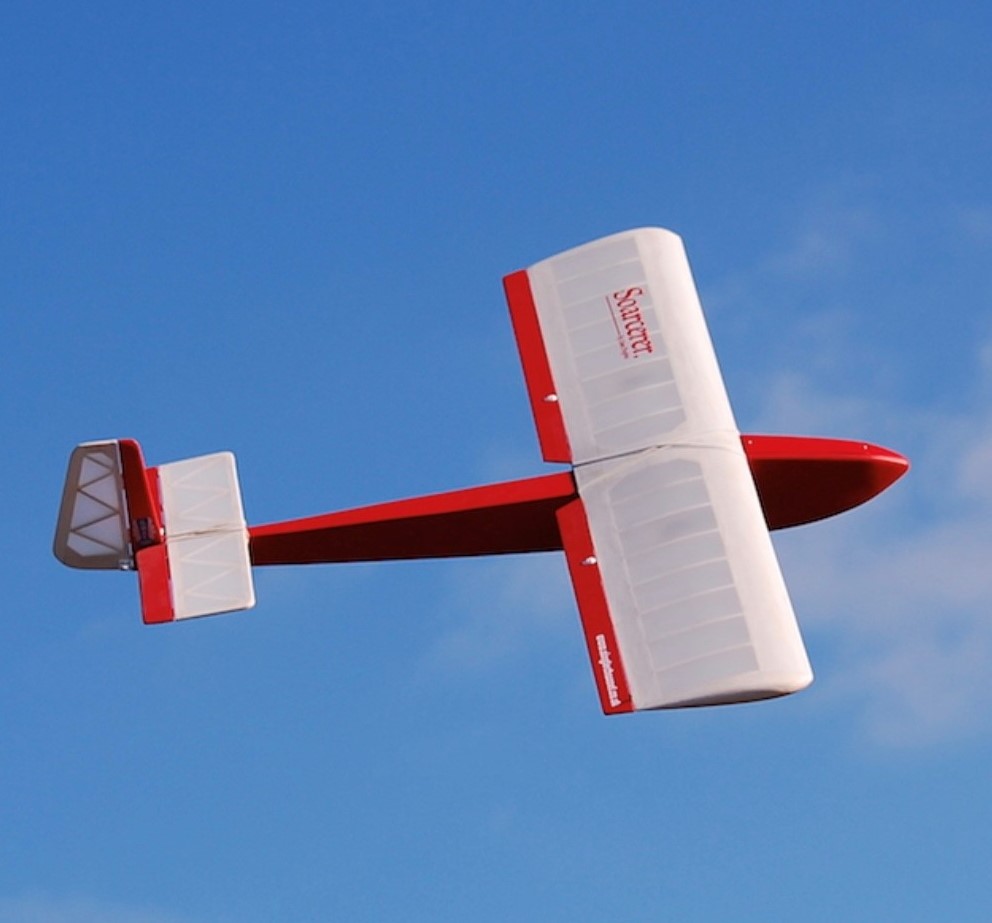

'Soarcerer' ~ Laser-cut Rib Set - Main photos courtesy of Ron Buckwell (Guisborough MFC)

This is Not a full kit, no plan is included and additional materials will be required to finish the model.

Dave Hughes's charming little intermediate slope soarer is a real delight to fly. Originally designed for rudder-only but now with modern Radio equipment and ailerons, the 'Soarcerer' will do everything a model of this type theoretically should not - rolls, bunts, inverted flying and guaranteed first-try spins. It stays airborne on the merest whiff of lift - and is also quite happy in winds of up to 40 mph! Don't ask for the whys and wherefores, it just happened!

And my first aileron slope model aged eight!!

Model Specification:

  • From:                           Radio Modeller 1969

  • Design:                        Dave Hughes

  • Type:                           Intermediate RC slope soarer for 2/3-channel

  • Wing span:                  52"

  • AUW:                           27-30 oz.

  • Wing Loading:             around 10 oz/sq ft

The box contains 28 laser-cut parts as follows:

  • 24 wing ribs parts cut from hand-selected 1.5mm balsa

  • 8 dihedral braces cut in 1.5mm aircraft ply for both aileron and rudder/elevator versions.

  • For simplicity and cheapness, root ribs are duplicated in 1.5mm balsa.

  • Ribs are also cut with a small knock-out servo cable hole if required.

  • No plan included.

    This is not a complete kit.

Plan can be purchased directly for this model via this link.

Plans are available for this model from Derick Scott @ https://www.ebay.co.uk/usr/flyer21uk

You can also view all models in our eBay store at www.ebay.co.uk/str/skyhighrc

Price includes FREE 1st Class P&P (UK only / not signed for).

Please read the rest of the description below carefully as this is not a complete kit.

  • The box contains laser-cut ribs/parts only.

  • This is not a complete model kit.

  • Additional materials will be required to complete the model.

  • All photos are for illustration purposes only.

  • Ribs for one wing are shown for clarity.

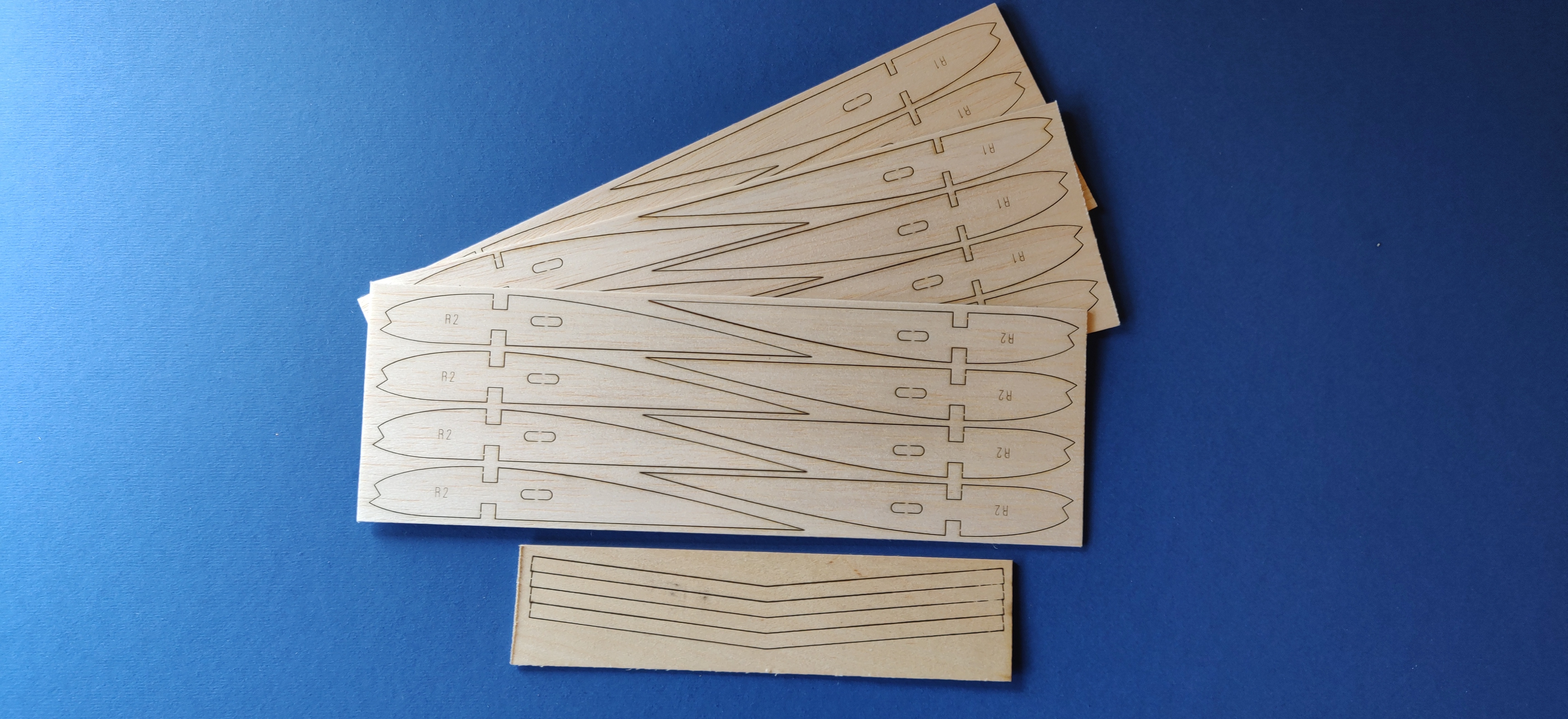

  • The photo of laser-cut parts (blue background) shows exactly what you will receive in the box

  • Building plans are not included

  • Plans can be obtained from https://model-plans.co.uk/
