RC Electronics EDGE Digital Control Throw Measuring Tool for RC Models & Gliders

RC Electronics EDGE – Precision Digital Control Throw Measuring Device

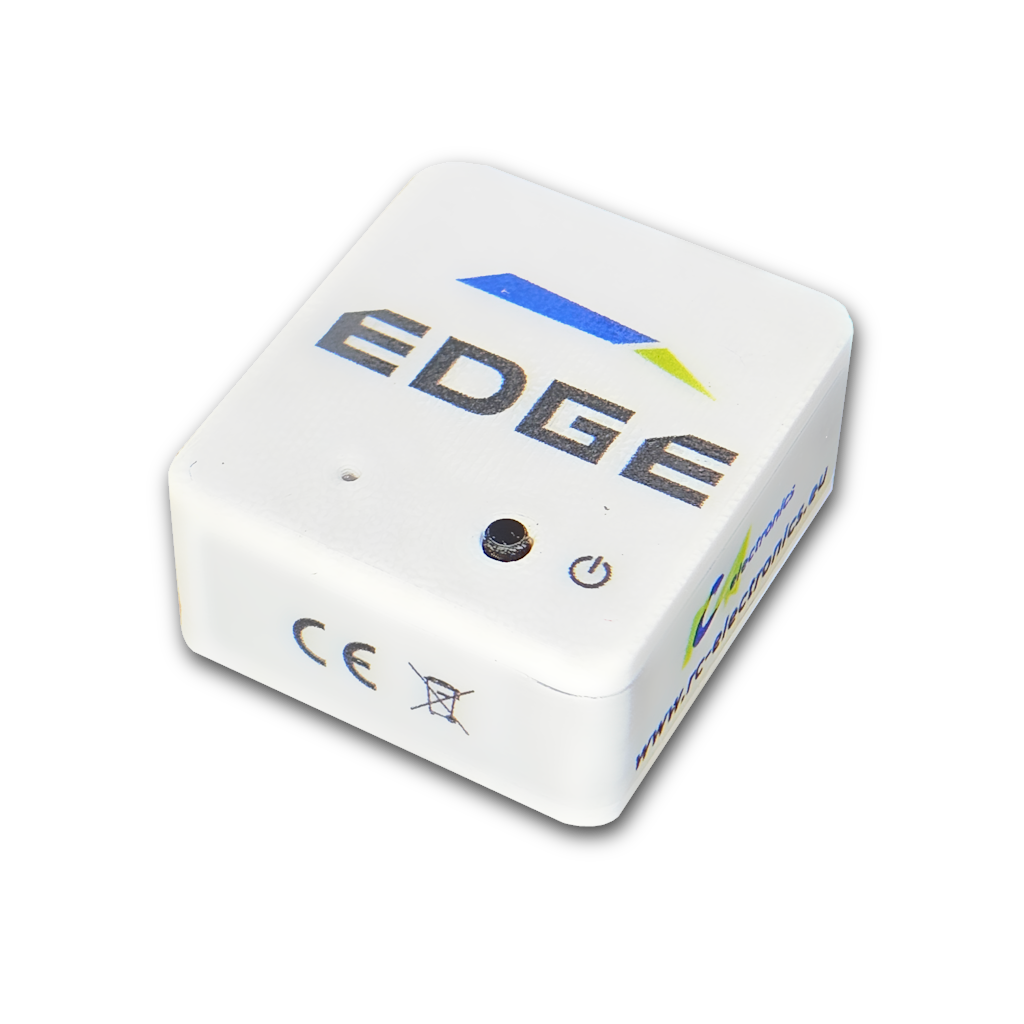

The RC Electronics EDGE is a compact, high-precision digital angle measuring device designed specifically for setting up R/C aircraft control surfaces quickly and accurately.

Ideal for measuring control throws, the EDGE can also be used for checking angle of attack (AoA), motor thrust lines, wing incidence and any other application where accurate angle measurement is required.

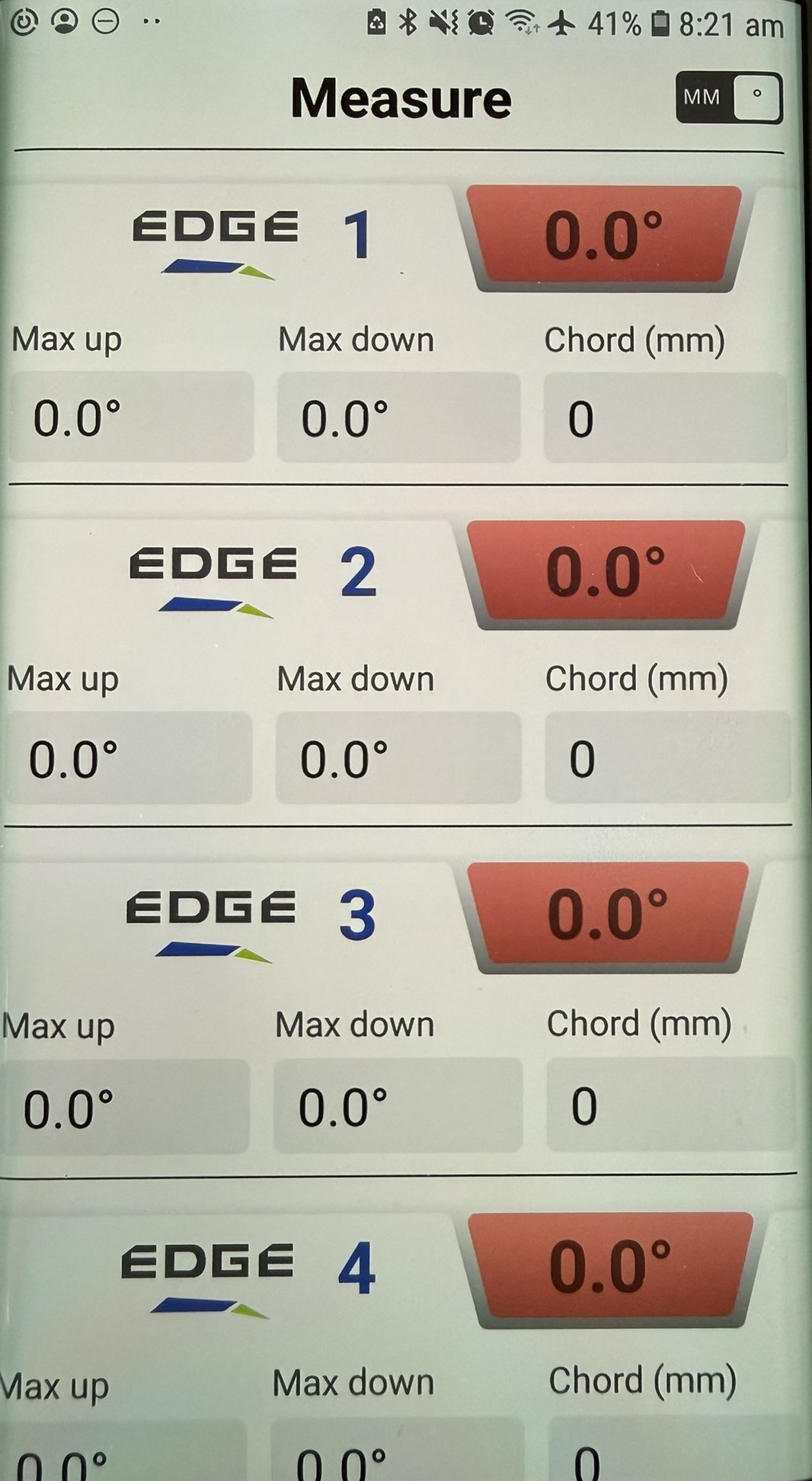

Using an integrated 3-axis accelerometer, the EDGE measures angles with exceptional precision and transmits the data wirelessly via Bluetooth Low Energy (BLE) to the free RC Electronics EDGE Android app.

The unique "Gecko Skin" backing securely grips control surfaces without clips, tape or other attachments, allowing fast positioning and removal while protecting delicate model finishes.

Key Features

• Ultra-lightweight – only 6.5g including battery, minimising load on control surfaces during measurement.

• Compact size – 25 × 22 × 11mm.

• High-precision digital angle measurement using an integrated 3-axis accelerometer.

• Automatic power-off function to maximise battery life.

• Connect and use up to four EDGE devices simultaneously with the RC Electronics EDGE app.

• Innovative Gecko Skin backing for quick attachment and removal.

• User-replaceable CR1220 battery.

• Outstanding battery life – up to 8 years standby or approximately 230 hours of active measuring.

• Bluetooth Low Energy (BLE) wireless communication.

• Plug-and-play operation with the free RC Electronics EDGE Android app.

Whether you're setting up an F3A aerobatic model, F3K discus launch glider, F5J competition sailplane, scale aircraft or helicopter, the RC Electronics EDGE provides fast, repeatable and highly accurate control surface measurements, helping you achieve the perfect setup every time.
