Sailplanes International 'Osprey 100' Model RC Glider - Laser-cut Balsa Rib Set
Model aircraft
£56.00
'Osprey 100' model glider ~ Laser-cut Rib Set
The Osprey 100 is a high-performance standard-class glider developed in the late 1980s from the already well-known 64-inch Osprey by Sailplanes International. Designed for rudder and elevator controls, the plans also include provision for ballast and spoilers.
The Osprey is very forgiving and is suitable for thermal soaring, cross-country competitions, and general sport flying. Being robust, it will take a fair amount of punishment. And it is this 'designed-in' strength, and suitability for varied tasks, that will make Osprey 100 a great all-time favourite!
Model Specification:
Brand: Sailplanes International by Les Bradley 1988
Type: RC slope & thermal soarer 2/3 channel
Wing span: 100”
Airfoil: modified E-176
Length: 51in
Wing Area: 799 sq in.
Wing loading: 8oz/sq ft
Weight Approx: 2lb 12oz
The box contains the following 60 laser-cut parts
50 wing ribs cut in 1.5 & 2.4mm balsa (2 spare ribs FOC!)
2 root ribs cut 1.5mm Aircraft ply
8 joiner tube root ribs cut 3.0mm lite ply. Note these ribs replace ply/balsa laminated ribs as detailed on the plan!
Ribs are also cut with small 'vent' holes to alleviate the 'ballooning' issue when film covering.
No building plan is included - this is not a full kit.
The plan for this model can be purchased via this direct link:
Check out our eBay shop to view all model categories at: www.ebay.co.uk/str/skyhighrc
Price includes FREE 1st Class P&P (UK only / not signed for).
Please note:
The box contains laser-cut ribs/parts only.
This is not a complete model kit.
Additional materials will be required to complete the model.
All photos are for illustration purposes only.

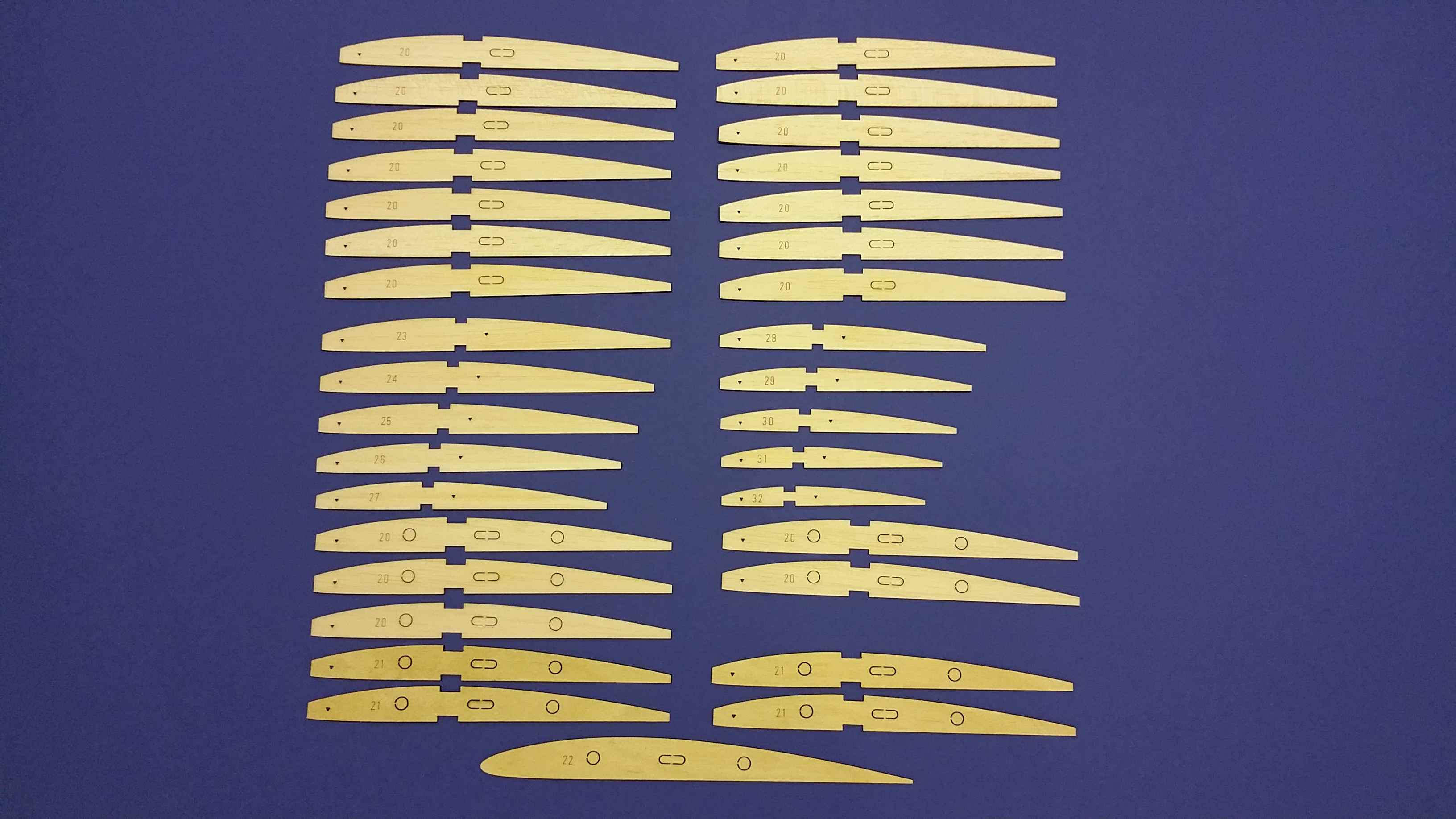

(for clarity, the picture shows ribs for one wing only)
Building plans are not included
Plans can be obtained from https://model-plans.co.uk/
