'Soarer Baby' - Vintage KK Model Glider / RC suitable - Laser-cut Balsa Rib Sets

'Soarer Baby' - Laser-cut rib set

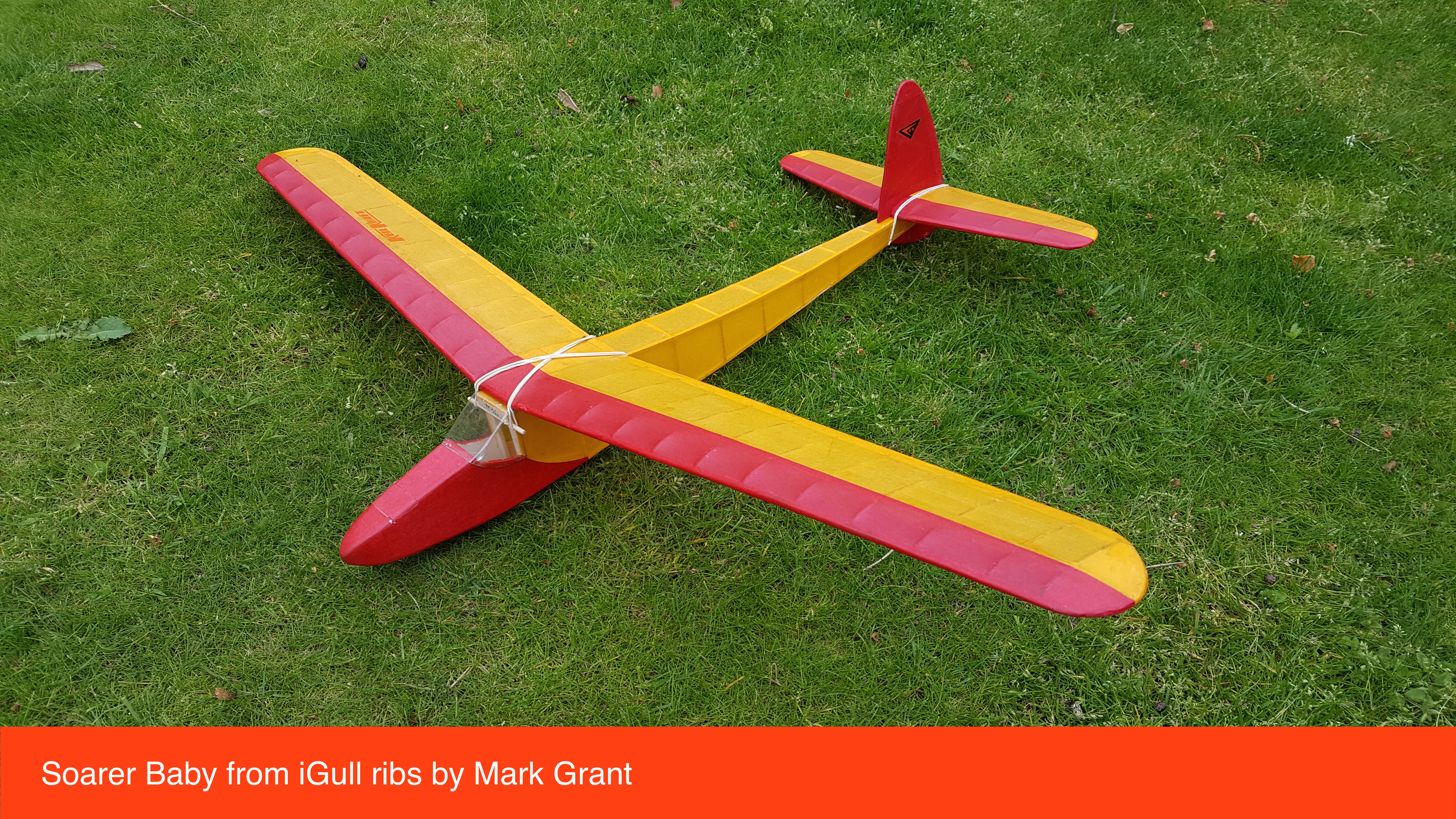

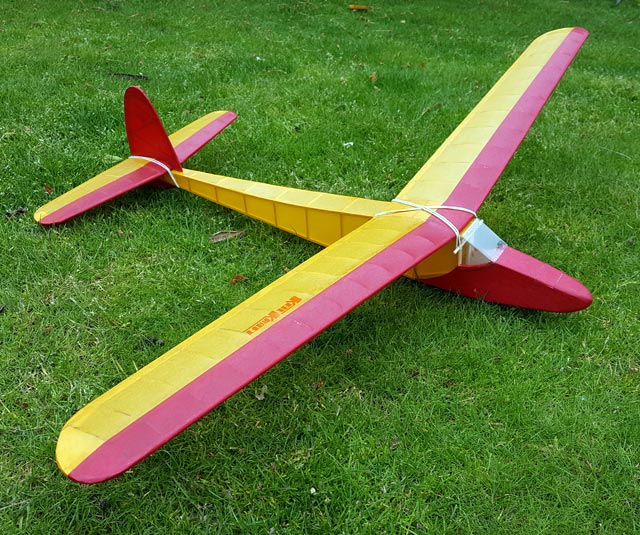

This classic KK towline glider for beginners was part of the KK Soarer series (3ft, 4ft & 5ft) and the design dates back to early 1946.

Specification:

• Brand:                      Keil Kraft - Albert E. Hatfull

• Wing Span:             36"

• Length:                   24.4"

• Weight:                   2.4oz

• Launch:                  Towline

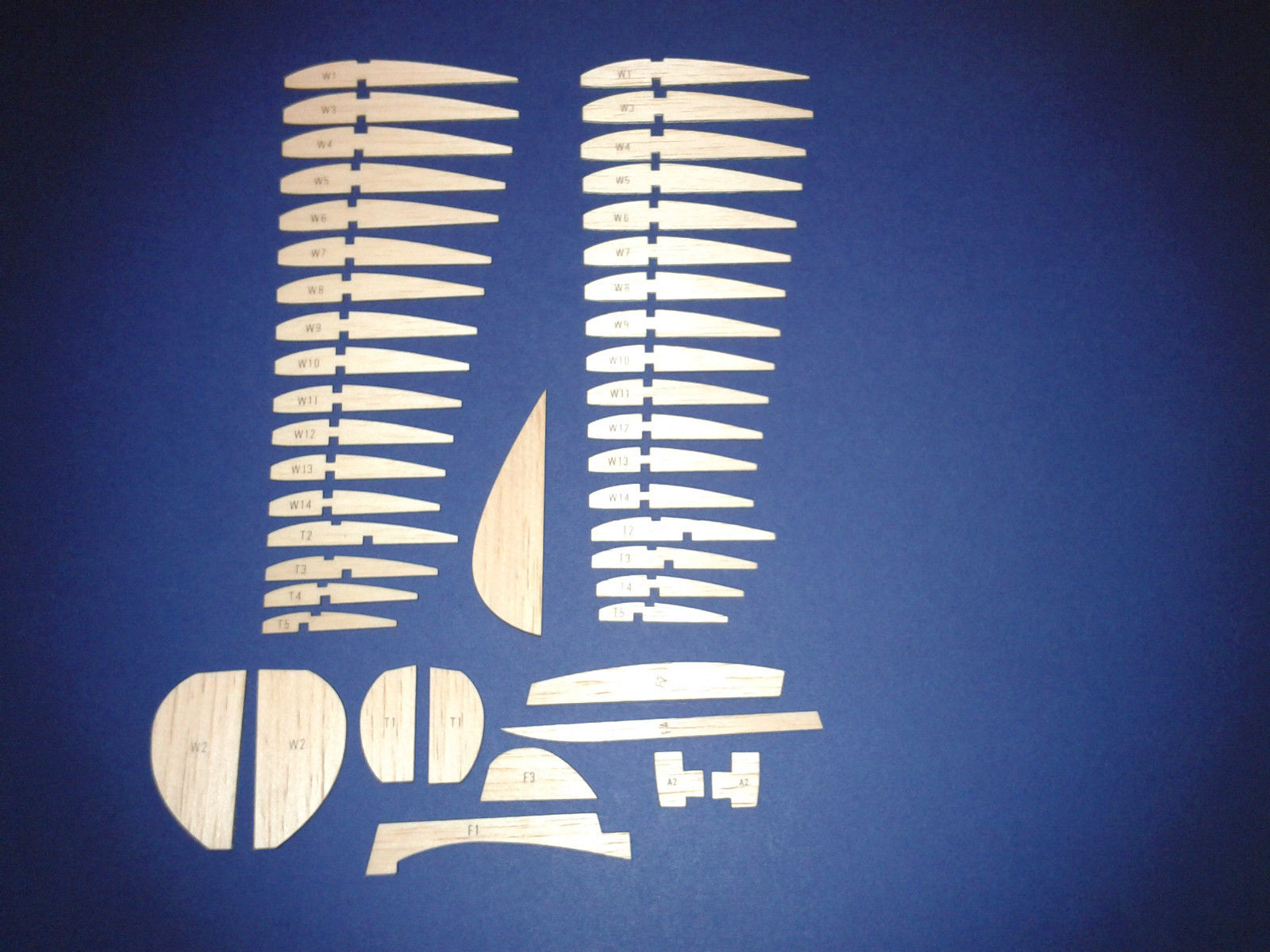

The box contains the following laser-cut parts ...

• 26 Wing Ribs / 8 Tail Ribs / 11 Misc. fin and tip parts. / All cut in 1.5mm & 3.0mm quality balsa.

• No plan included - This is not a complete kit

The plan for this model can be purchased via this link:

https://www.ebay.co.uk/itm/134914599716?mkcid=16&mkevt=1&mkrid=711-127632-2357-0&ssspo=WcQ_rwLZSfO&sssrc=4429486&ssuid=CiNy0x4XTBC&var=&widget_ver=artemis&media=EMAIL

Check out our eBay shop to view all model categories at: www.ebay.co.uk/str/skyhighrc

Additional material required - indication only!

• Fuselage:1/8 sq balsa strip wood (longerons) -

  balsa nose block - 1/16 balsa sht - 1/8x1/4 balsa Formers

• Fuselage: plastic windscreen  - 1/16 piano wire two hook - 1/8 dowel

• Fin: 1/4x1/8 strip balsa - 1/8 sq balsa strip wood

• Tailplane: 3/16x1/8 LE - 3/8x1/8 TE - 1/8x1/16 balsa spar - 1/8 sq balsa spar - 1/16 balsa sht

• Wing: 1/8x1/4 LE - 3/8x1/8 TE - 1/8sq spars Top & Bot - 1/16 ply wing brace

• Covering materials

Imagine calculating and cutting those 45 parts by hand, get a set now!

Price includes FREE 1st Class P&P (UK only / not signed for).

Please note:

• The box contains laser-cut ribs/parts only.

• This is not a complete model kit.

• Additional materials will be required to complete the model.

• All photos are for illustration purposes only.

• Building plans are not included

• Plans can be obtained from https://model-plans.co.uk/
