Tenshock ESC Program Card

RC Equipment

£29.00

Out of stock

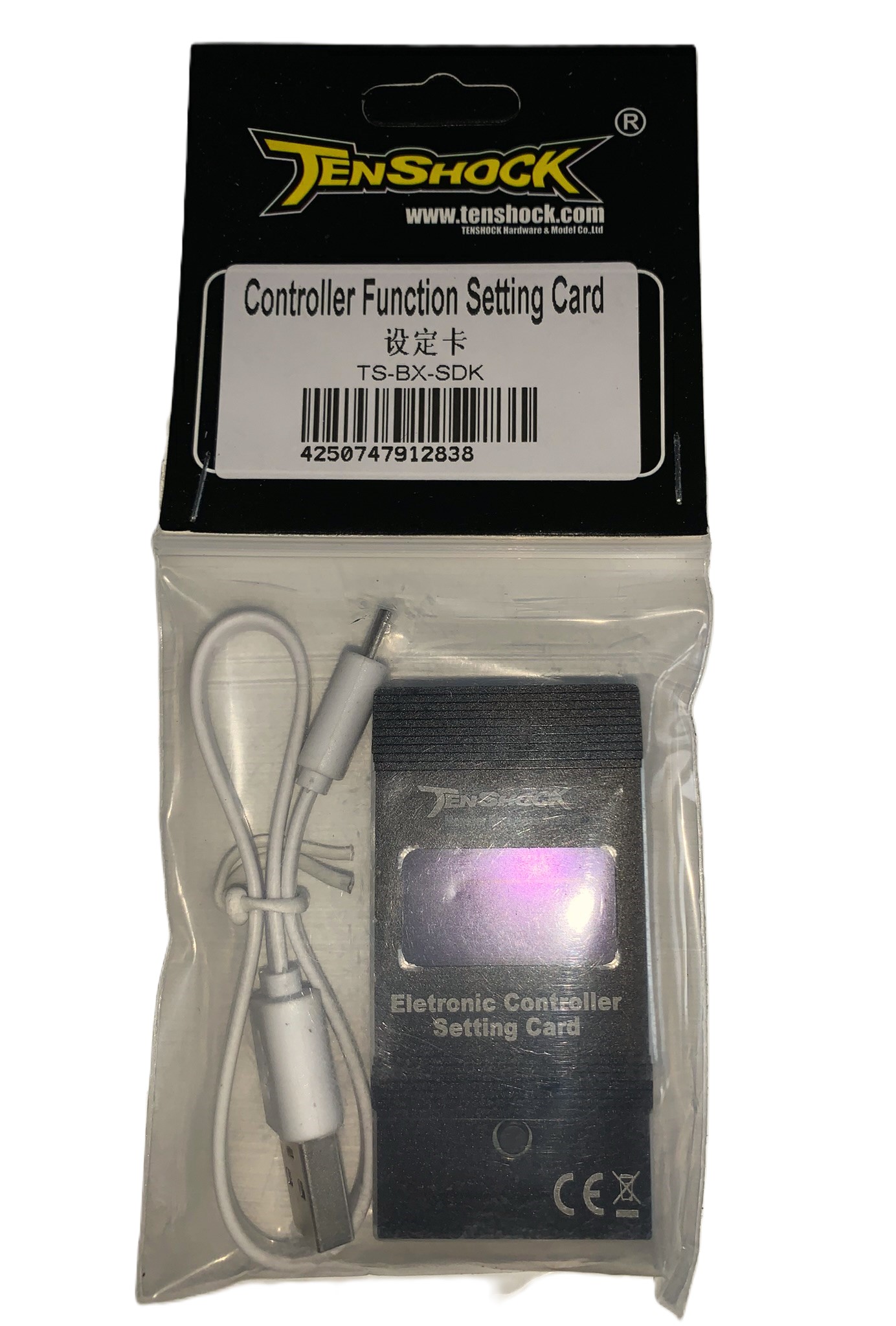

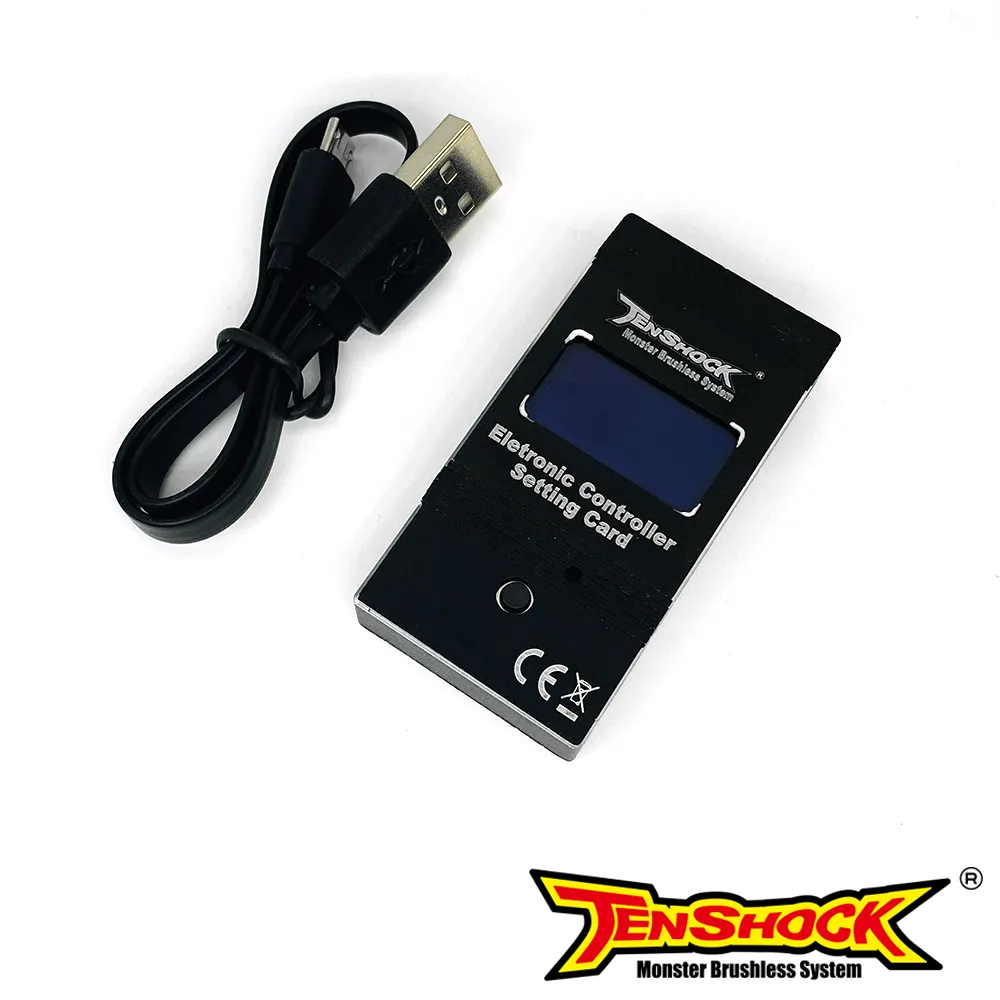

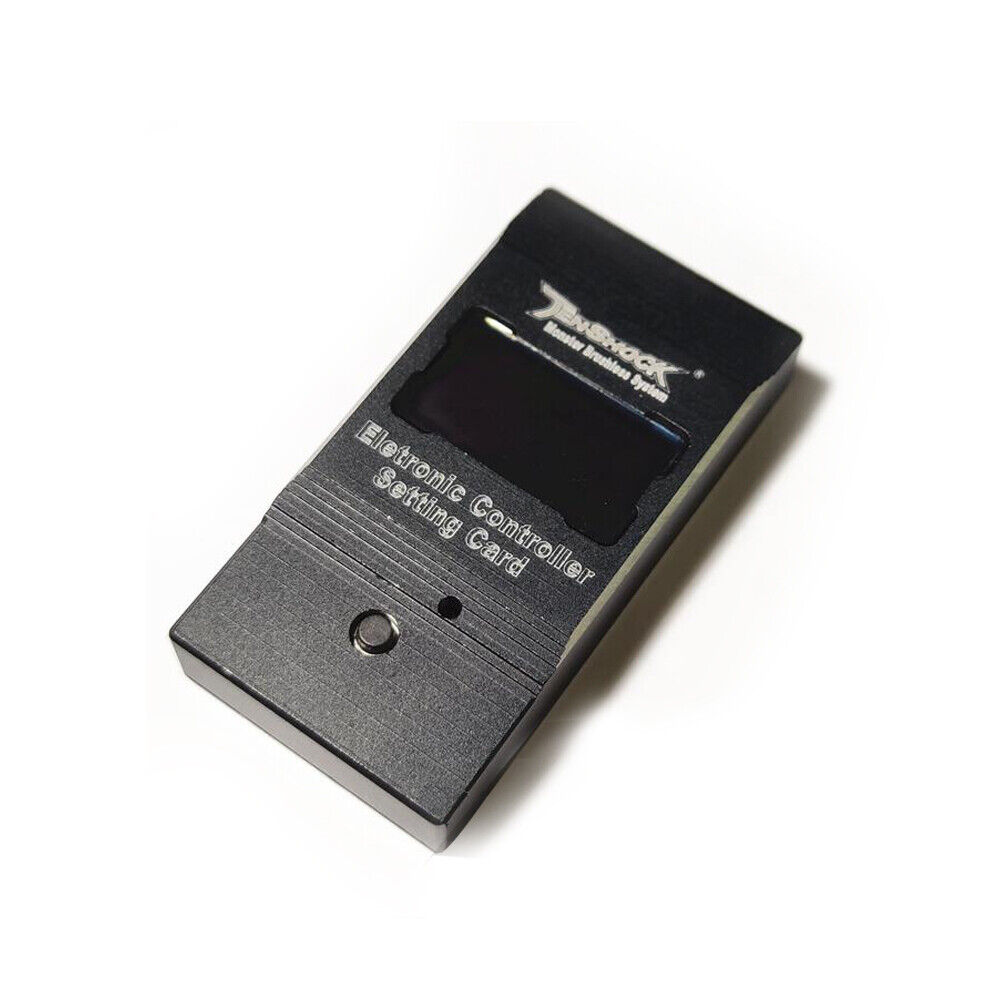

Tenshock Multifunction Program Box Controller / Function Program Card

Price includes FREE P&P (UK only / not signed for).

Function settings：

  • Menu language：       Yes (Chinese / English)

  • Motor rotation：         Yes (CW/CCW）

  • Battery type:                yes (NI-MH/LiPo)

  • Voltage protection： Yes

  • BEC Voltage ：           Yes（6V/7.2V/8.4V）

  • Timing:                         Yes

  • Starting Strength：    Yes

  • Brake force：              Yes

  • Temp protection：     Yes

  • PWM：                         Yes (6K/8K/16K)

Dimensions:

  • Length:        63mm

  • Width:          32mm

  • Thickness:  12mm

What's included:

  • Electronic program control unit

  • USB/Micro USB lead

Basic application process:

  1. Turn your ESC off and disconnect the throttle lead from the receiver.

  2. Connect the throttle lead of ESC with the 3-pin connectors of this program card.

  3. Turn your ESC on. All the settings are displayed on the corresponding LEDs.

  4. Press and then release button to choose different functions.

  5. Press and hold the button to change the value of each function.

  6. After finishing the setting, turn your ESC off and disconnect the throttle lead from the program card.

  7. Connect the ESC back to your receiver. Now you can try the different functions of ESC in your car.
