Thermal Magic Light - RC 2M Model Glider - Laser Cut "RIB & Fuselage SET"

iGull Thermal Magic Light 2m - Parts set

Note: This set is not a complete kit. A plan is not included, and additional materials are required to complete the model.

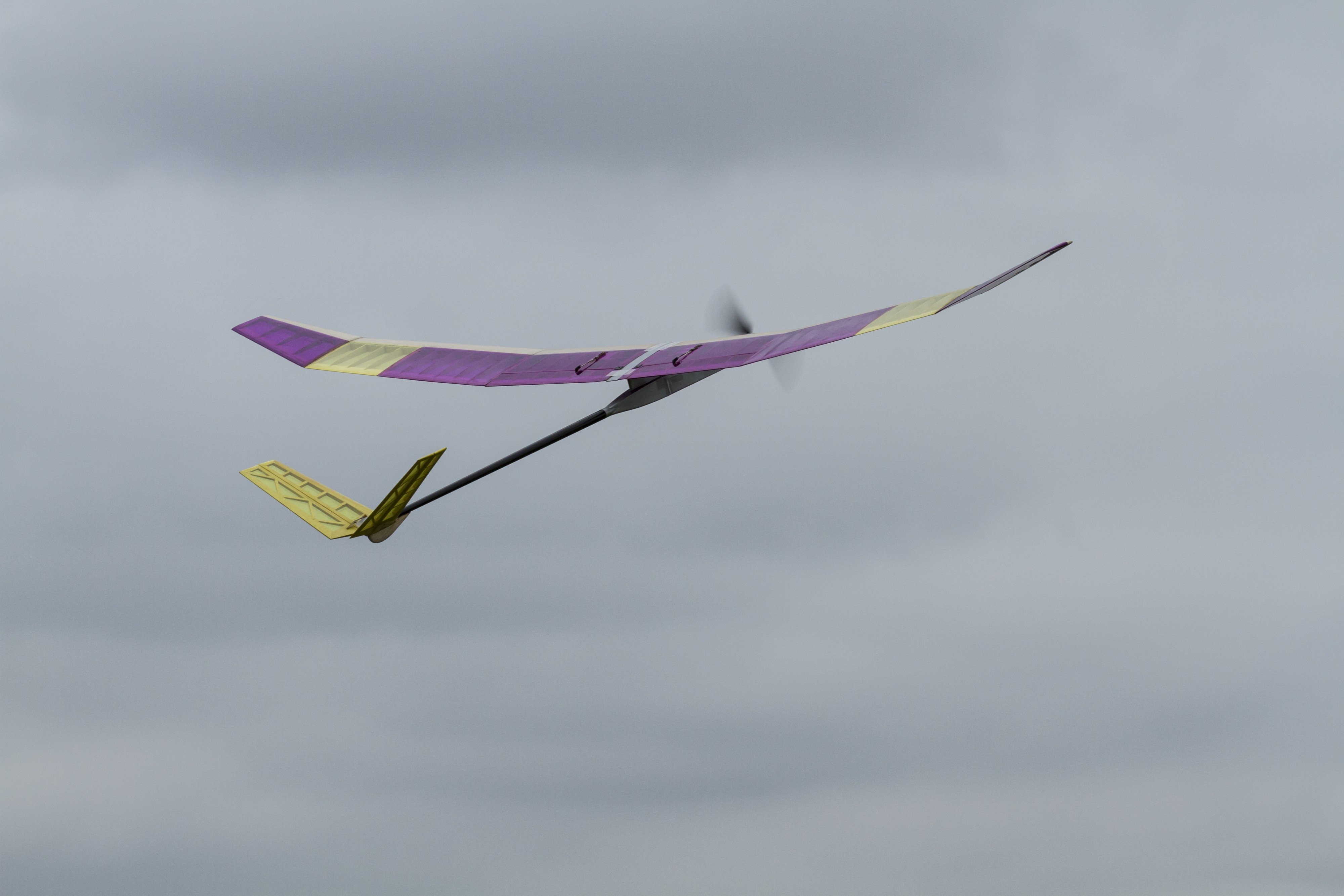

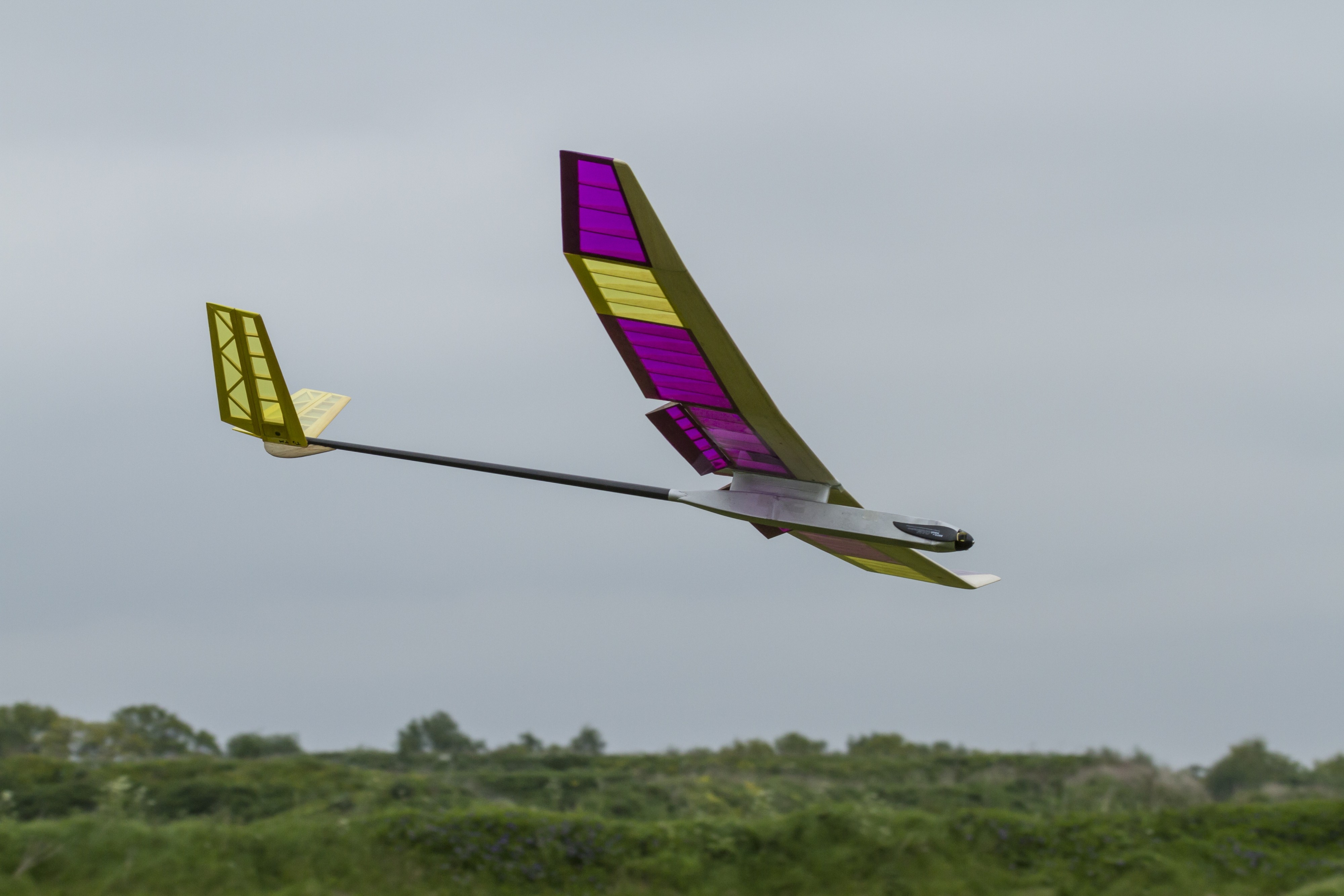

This is the 2m competition electric glider from 2016 designed by Trevor Wain.

Model specification:

• Wing Span: 2m (78")

• Wing Section: AG series - A442d-02f transitioning to AG40d -02f at the tip break with 0.7% camber reduction

• Wing area: 37.75 dm sqd

• Controls: Elevons, flap airbrake

• Fuselage length: 1090 mm

The shipping box contains ...

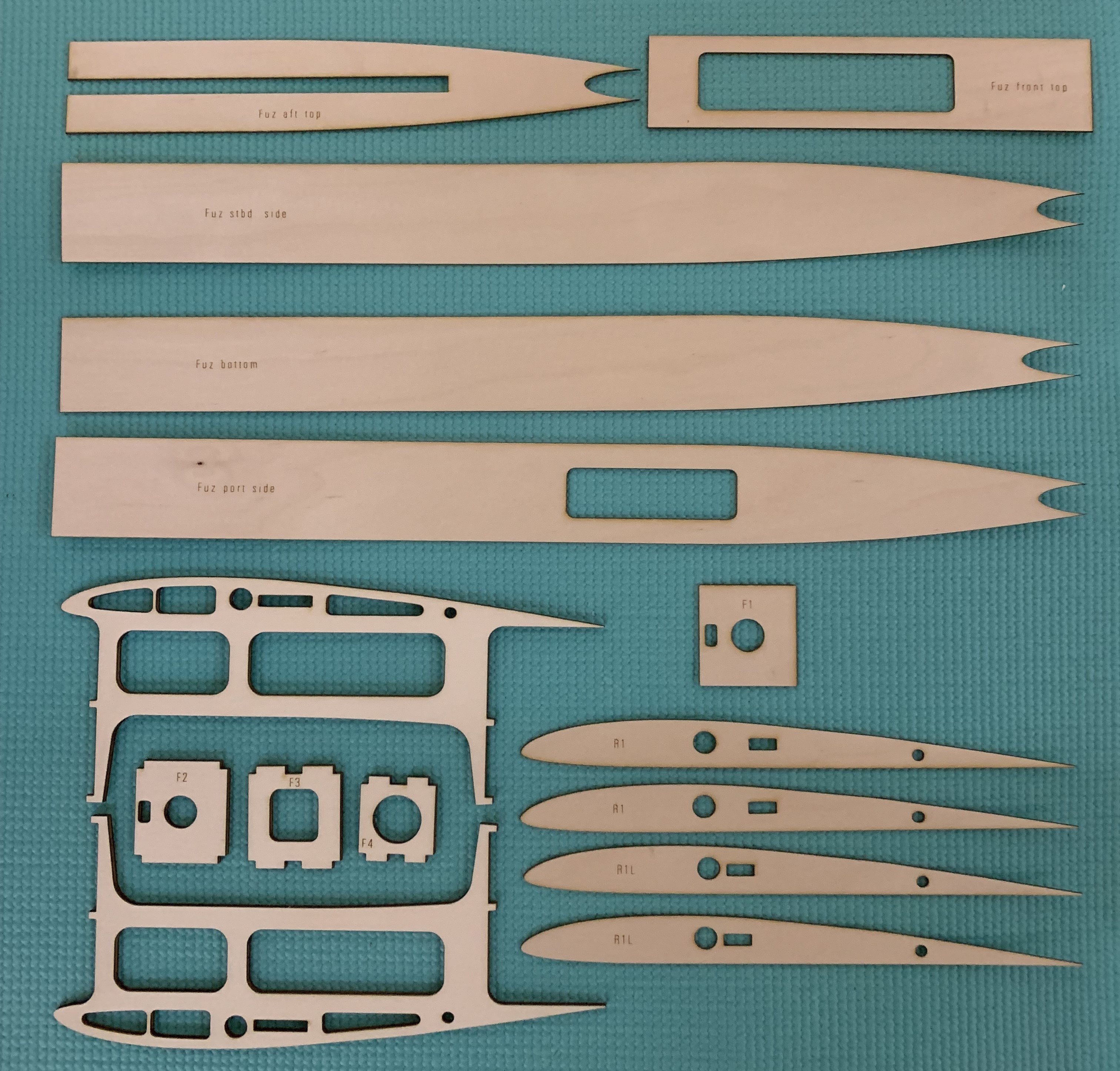

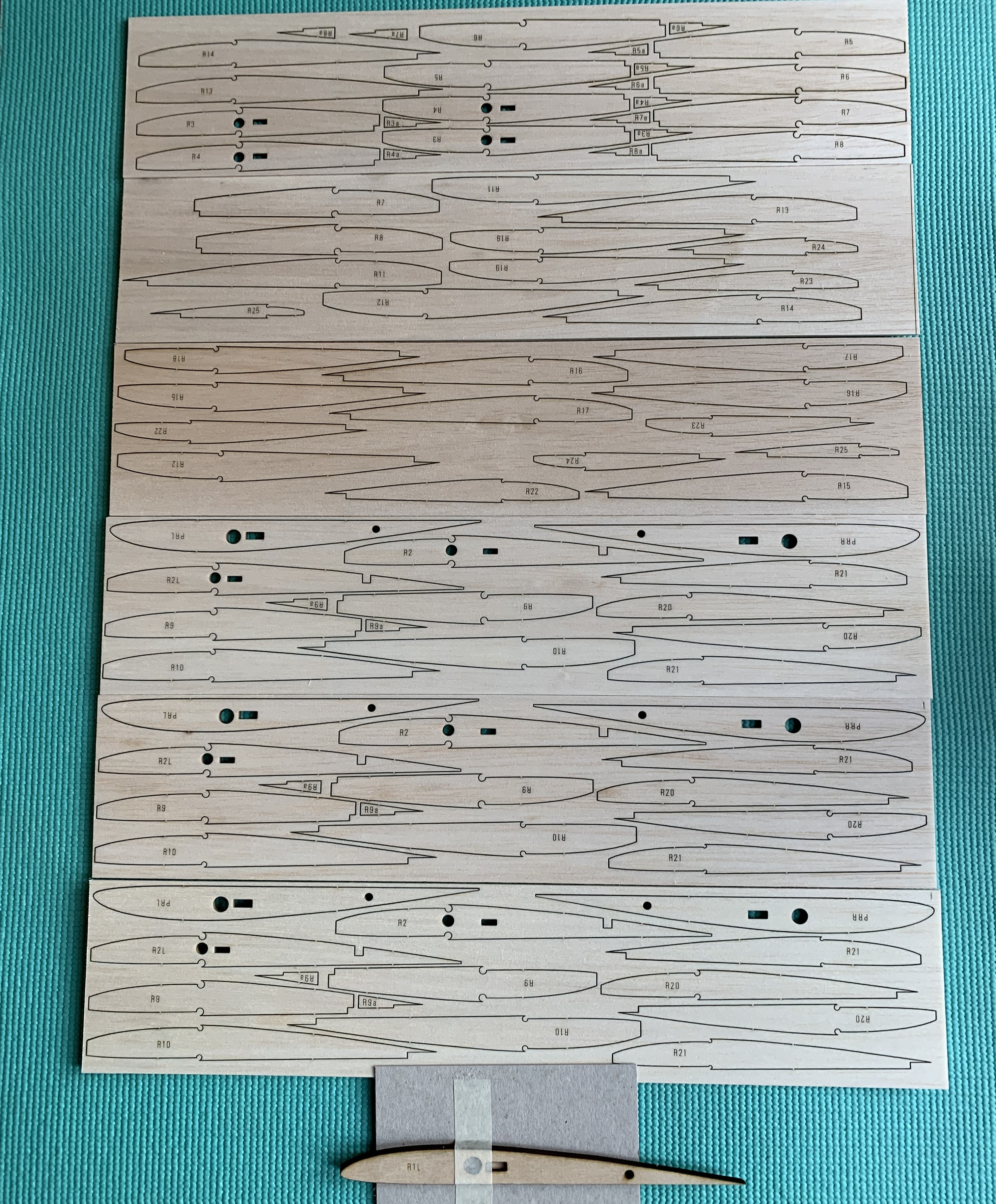

• All wing ribs are laser-cut from balsa and ply.

• Fuselage pylon sides cut from 3mm Light ply

• Fuselage pod sides & bottom cut from 1mm aircraft ply

Required to complete the model ...

• Balsa strip

• Some 3mm carbon tube wing spars

• Carbon boom for fuselage

• Coverings

• Fittings

• Avionics

• Motor - NTM Propdrive 2830 1100Kv

Price includes FREE 1st Class P&P (UK only / not signed for).

Please note:

• The box contains laser-cut ribs/parts only.

• This is not a complete model kit.

• Additional materials will be required to complete the model.

• All photos are for illustration purposes only.

• Model plan available from Derick at  www.model-plans.co.uk

• Building instructions available upon request (Email)
