Tigerkitten by Ace RC - Semi Scale Sports Model - Laser-cut Balsa/Ply parts Set

Model aircraft

£48.00

Ace RC 'Tigerkitten E' laser-cut parts set.

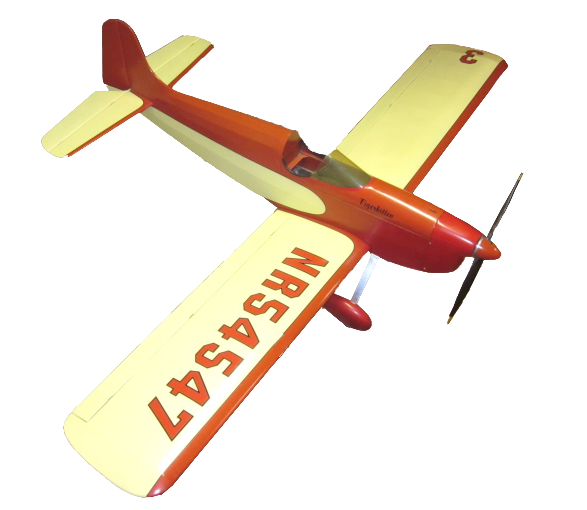

Tigerkitten is a very pretty and popular 54” span electric sports model of the 1990’s designed by Bob Benjamin. Some parts are duplicated to provide a cheaper and more accurate material cut - viz 3/16” is built from 1/8” + 1/16” etc. The pack includes a few minor modifications - mainly in the firewall area to accept a modern brushless motor.

This is a particularly difficult set of parts to cut by hand for this classic Ace RC aircraft.

Model specification:

  • Brand:                   Ace RC by Bob Benjamin 1996

  • Type:                     Sports Electric/IC low wing model

  • Wing span:          54"

  • Wing area            450 sq in

  • Weight:                 50-60 oz

  • Engine:                 .25 glow  conversion

  • Electric:               Turnigy G25 870kv from HobbyKing with a 4s/3000mAh LiPo battery.

The box contains the following 77 laser-cut parts

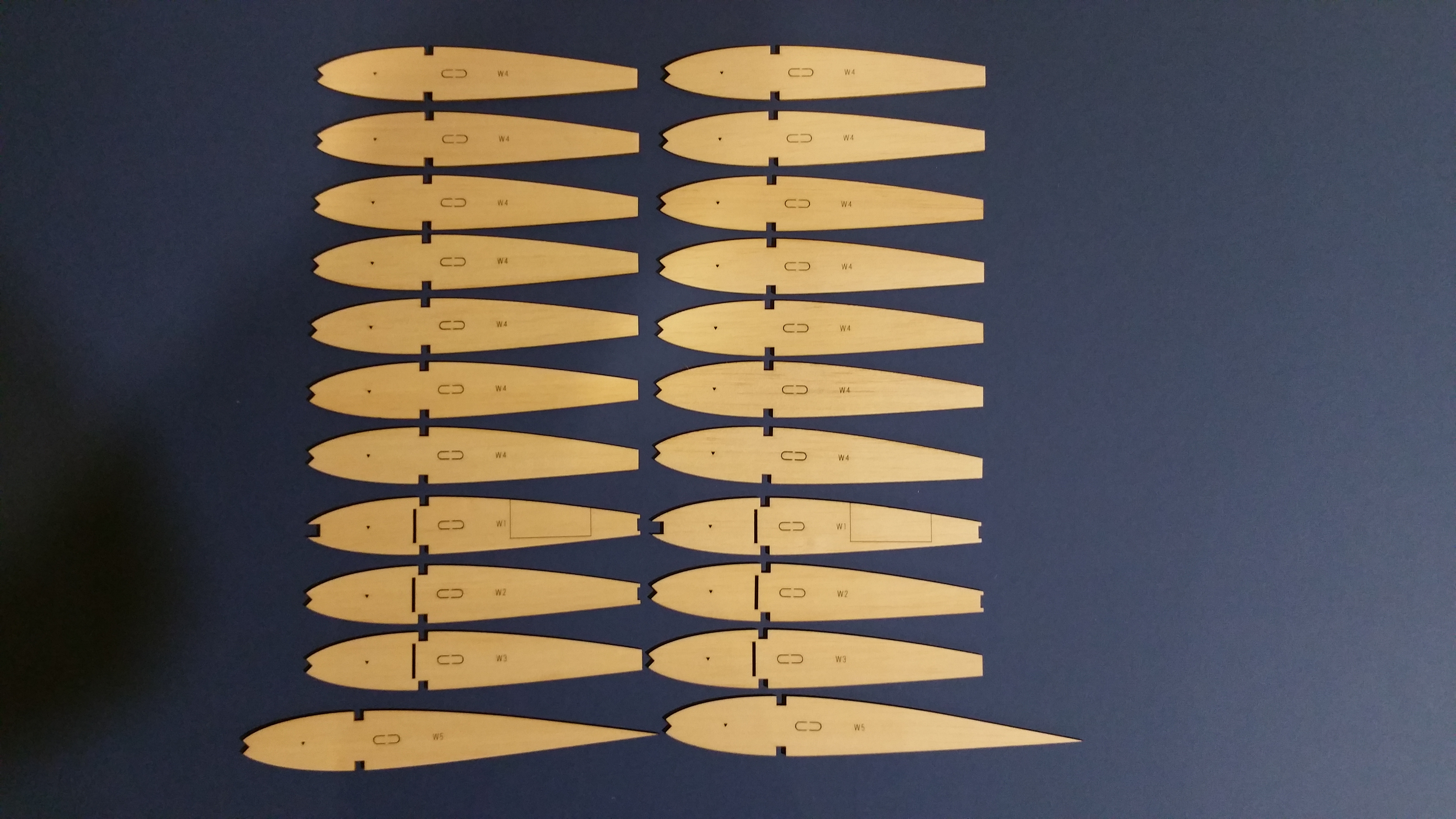

  • 22 x wing ribs laser-cut in hand-selected 1.5mm Balsa

  • All wing ribs are cut with pop-out servo cable holes and vent holes to prevent film ’ballooning’

  • 17 fuselage formers & tail fins laser-cut in 1.5mm hand-selected balsa

  • 20 gussets cut in 1.5mm balsa

  • 8 assorted parts cut in 3.0mm balsa

  • 6 fuselage formers cut in 3mm lit ply

  • 3 x ply wing braces + 1 former laser-cut in 1.5mm aircraft ply

  • Templates to produce the laminated wing/stab/fin outlines.

  • No building plan is included. This is not a complete kit

The plan for this model can be purchased via this direct link:

https://www.ebay.co.uk/itm/133739911724?mkcid=16&mkevt=1&mkrid=711-127632-2357-0&ssspo=WcQ_rwLZSfO&sssrc=4429486&ssuid=CiNy0x4XTBC&var=&widget_ver=artemis&media=EMAIL

Check out our eBay shop to view all model categories at: www.ebay.co.uk/str/skyhighrc

Price includes FREE 1st Class P&P (UK only / not signed for).

Please read the rest of the description below carefully as this is not a complete kit.

  • The box contains laser-cut ribs/parts only.

  • This is not a complete model kit.

  • Additional materials will be required to complete the model.

  • All photos are for illustration purposes only.

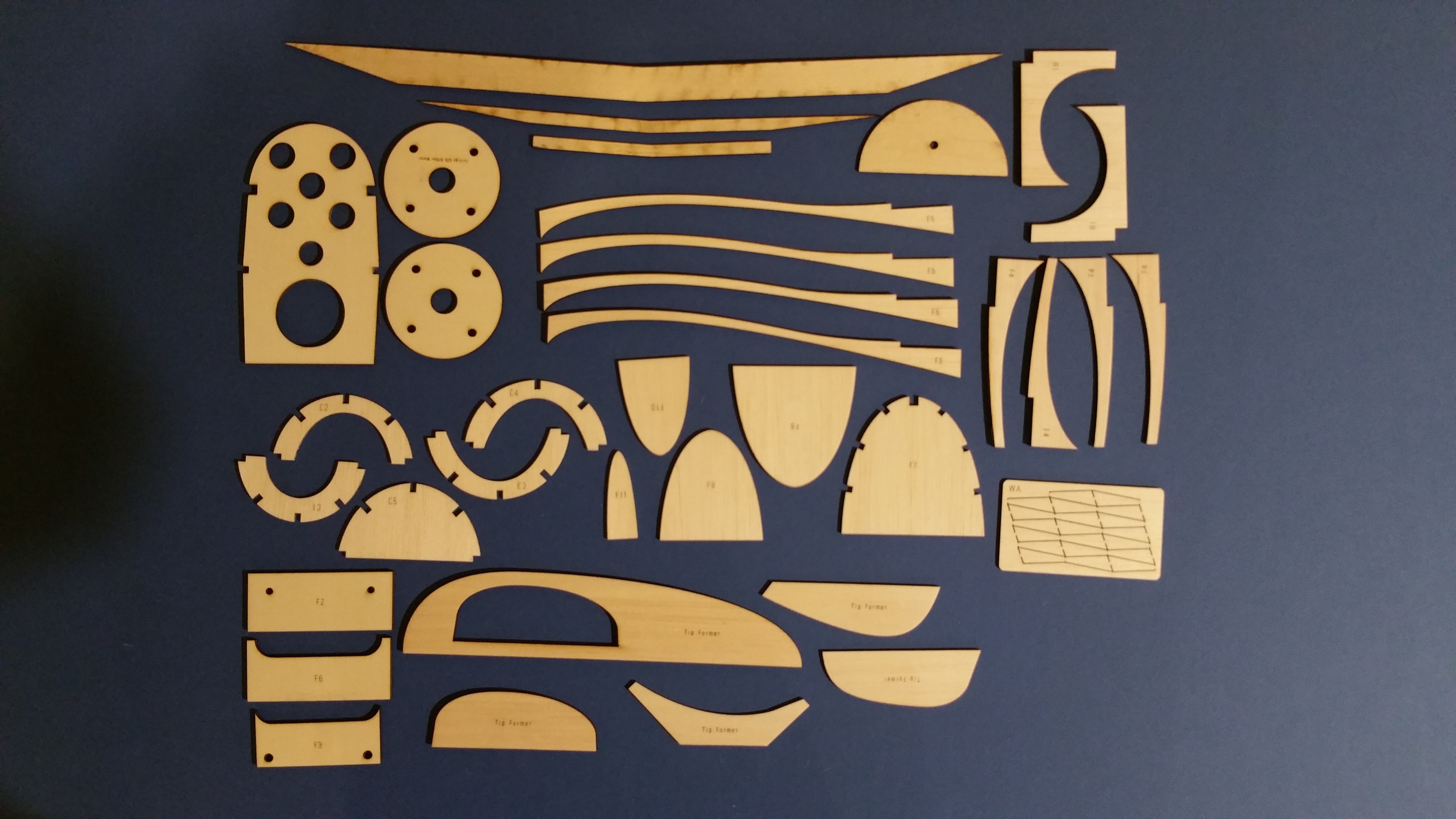

  • The photo of laser-cut parts (blue background) shows exactly what you will receive in the box

  • Building plans are not included

  • Plans can be obtained from https://model-plans.co.uk/
