'Watts Up' - RC 100" Electric Powered Sailplane ~ Laser-cut Balsa Rib Set
Model aircraft
£55.00
‘Watts Up' Laser-cut Rib Set
This successful 100-inch Class competition/sport glider designed by Brian Austin designed a 100” (2.54m) ‘Watts Up’ electric soarer (plan MW3398 available from RCMW). It is also possible to order extra ribs for an extended wing to your spec - please ask for a quote.
Model Specification:
Design: Brian Austin
Type: RC Thermal electric glider 3-channel
Wing span: 100 in (2.54m)
Wing section: MH32
Wing Area: 864 sq inches
Wing loading: 7.6 ounces square foot
Weight: 1200g (42 ounces) Approx
Power: >300 watt set up
The box contains a set of the following laser-cut parts
63 Wing ribs cut and marked tapered ribs in 2.4mm quality balsa.
4 End cap ribs in 1.0mm aircraft ply
Root ribs are duplicated in 2.4mm balsa - ribs are also marked (unlike originals).
No plan is included. This is not a complete kit.
Carbon materials available from free flight supplies in Norfolk
http://www.freeflightsupplies.co.uk/
Build thread: https://www.rcgroups.com/forums/thumbgallery.php?t=1108935&do=threadgallery&type=all&group=none&starter=no
You can also view all models in our eBay store at www.ebay.co.uk/str/skyhighrc
Price includes FREE 1st Class P&P (UK only / not signed for).
Please read the rest of the description below carefully as this is not a complete kit.
The box contains laser-cut ribs/parts only.
This is not a complete model kit.
Additional materials will be required to complete the model.

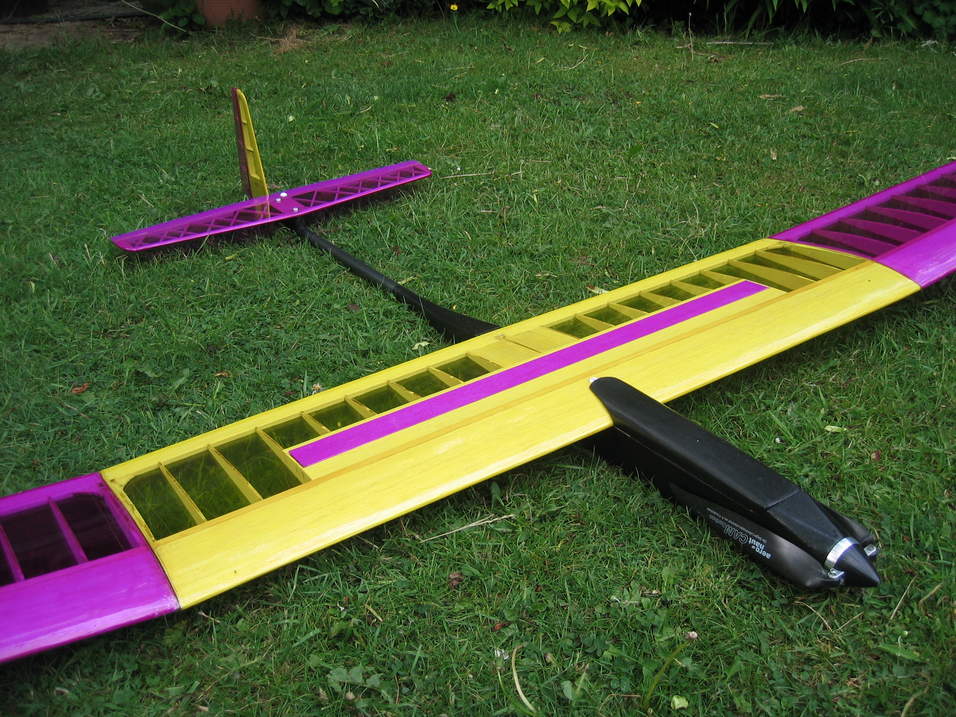

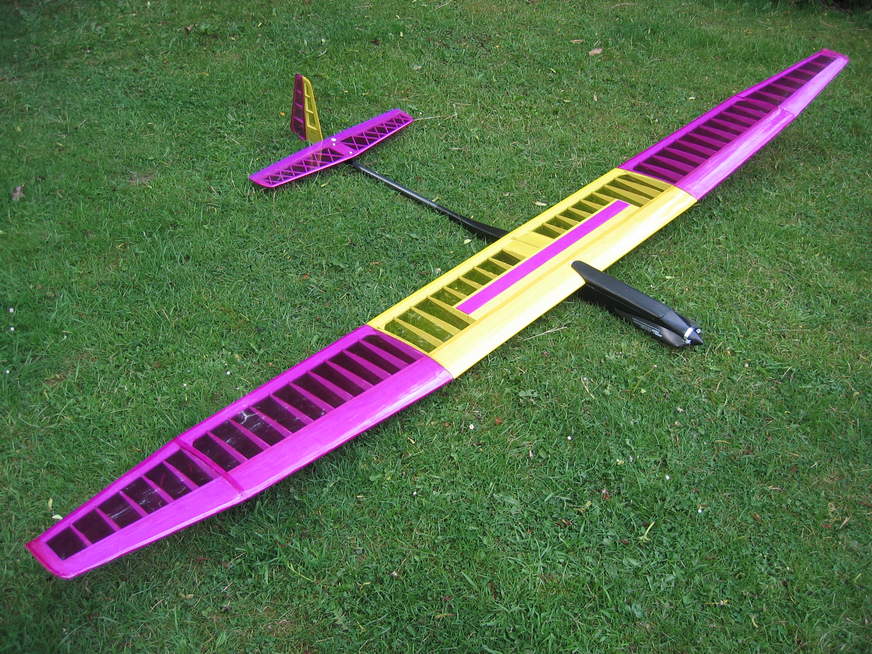

All photos are for illustration purposes only.
(for clarity, the picture shows ribs for one wing only)

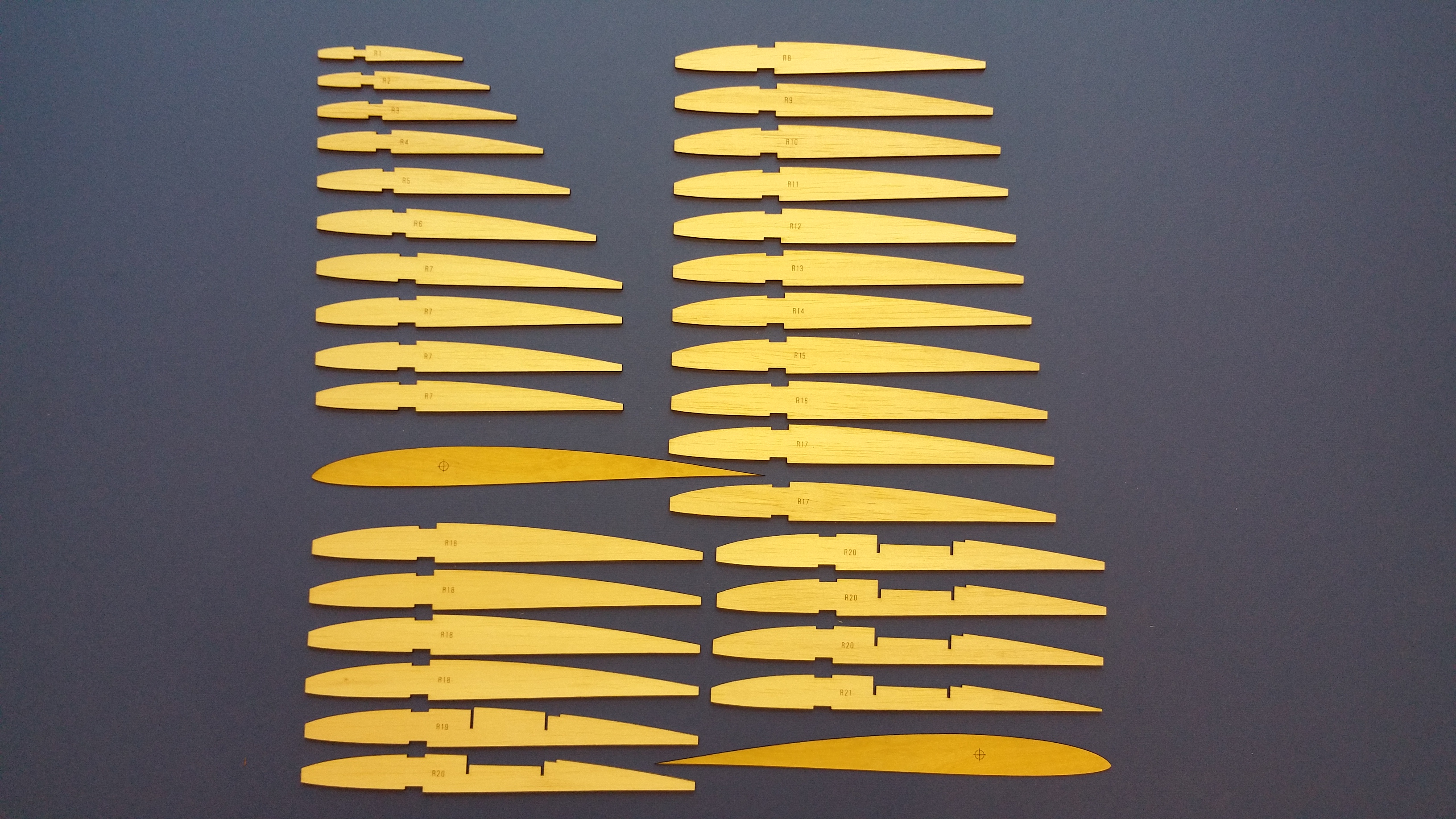

The photo of laser-cut parts (blue background) shows exactly what you will receive in the box
Building plans are not included
Plans can be obtained from https://model-plans.co.uk/
